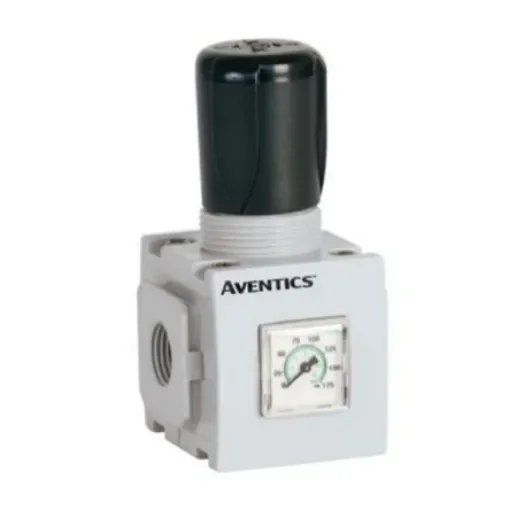

EMERSON ? AVENTICS G 3/8 Pneumatic Regulator - 0.5bar to 10bar, 3/8in, 16bar max. input - G652AR003GA00H0
High flow EMERSON pneumatic regulator with adjustable pressure from 0.5 to 10bar.
Manufacturer part number: G652AR003GA00H0
GTIN: 3661475012720
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 3/8
Maximum Outlet Pressure = 10bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Port Connection Thread Size = 3/8in
Typical Flow Rate = 228.6 SCFM, 6530L/min
Integral Check Valve = Without Check Valve
Port Connection Thread Standard = G
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +50°C
Overall Height = 151mm
651/652 Series Regulator. A high flow regulator from ASCO ‘s 651/652 series or air preparation equipment. Threaded ports allow this pneumatic regulator to be mounted individually or with other equipment from the 651/652 series. The 651/652 series are a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications. Features and Benefits. • High flow with a wide range of adjustable output pressure ranges. • Available with relieving, non-relieving and internal flow check options. • Low profile gauge bar/PSI. • Optional extended temperature range of -40 °C to +80 °C. • Threaded ports allow for individual or modular mounting
