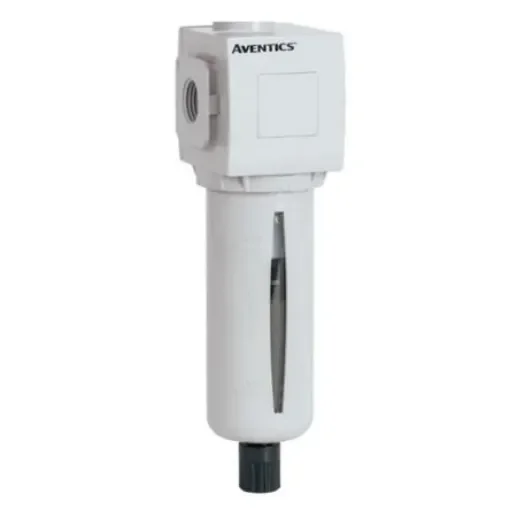

EMERSON – AVENTICS 652 series 25µ G 1/2 16 bar Pneumatic Filter with Automatic, Manual, Semi Automatic drain - G652ABJP4JA000N

Filtration Size = 25µ
Port Connection = G 1/2
Drain Type = Automatic, Manual, Semi Automatic
Manufacturer Series = 652
Typical Flow Rate = 129.5 SCFM, 3700 L/min
Maximum Operating Pressure = 16 bar
Maximum Operating Temperature = +50°C
Port Connection Thread Standard = G
Minimum Operating Temperature = -20°C
Port Connection Thread Size = 1/2 in
Filter Type = Air Filterbar

651/652 Series Filter. A pneumatic filter fitted with a semi-automatic drain from ASCO ‘s 651/652 series. The units have a 25 µm, sintered polyethylene element with a centrifugal separator for removal of particulate and water contamination from the air line. They are fitted with a polycarbonate bowl with bowl guard and sight gauge to meet industry requirements. The 651/652 series are a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications. Features and Benefits. • Large selection of filtering capabilities to remove particulate and water droplets from compressed or inert gas. • Sintered polyethylene elements, with centrifugal separator. • Optional extended temperature range of -40 °C to +80 °C. • Innovative two position plastic drain with manual and semi-automatic functions. • Polycarbonate bowls. • Threaded ports allow for individual or modular mounting. • Air purity class according to ISO 8573-1 2010
