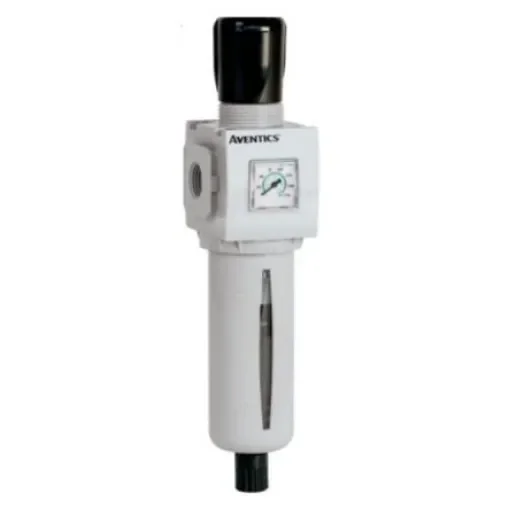

EMERSON ? AVENTICS 652 Polycarbonate Filter Regulator, 25µm, G 1/2, Manual, Semi Automatic, 10 bar - G652APJP4GA00HN
The EMERSON AVENTICS Filter Regulator offers high flow and easy installation for various compressed air applications.
Manufacturer part number: G652APJP4GA00HN
GTIN: 3661475012690
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Port Connection = G 1/2
Maximum Operating Pressure = 10 bar
Manufacturer Series = 652
Drain Type = Manual, Semi Automatic
Filtration Size = 25µm
Port Connection Thread Size = 1/2 in
Maximum Ambient Operating Temperature = +50°C
Minimum Process Operating Temperature = -20°C
Minimum Operating Pressure = 0.5bar
Minimum Ambient Operating Temperature = -20°C
652 Series Filter Regulator. A filter regulator with semi-automatic drain from ASCO 652 series. The units have a micron rating of 25 µm and are fitted with a polycarbonate bowl with bowl guard. These units come ready mounted and ready for installation. The 652 series are a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications. Features and Benefits. • High flow with a wide range of adjustable output pressure ranges. • Low profile gauge bar/PSI. • Optional extended temperature range of -40 °C to +80 °C. • Sintered polyethylene elements with centrifugal separator. • Threaded ports allow for individual or modular mounting. • Innovative two position plastic drain with manual and semi-automatic functions. • Polycarbonate bowls. • Air purity class according to ISO 8573-1: 2010
