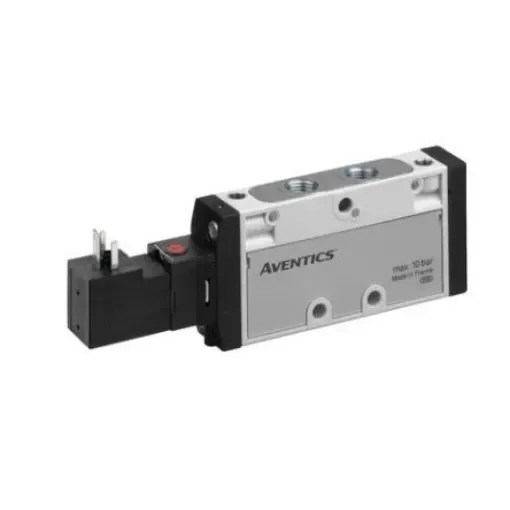

EMERSON – AVENTICS 5/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 TC08 Series 24V dc - 0820060026

Aventics Pneumatic Solenoid ValveThe Aventics TC08 series 5/2 port directional valve has a maximum flow rate of 800L/min. This fibreglass reinforced PA pneumatic solenoid valve has a G1/8in and operating pressure ranging between 3bar and 10bar. Its solenoid voltage is 24VDC with 2W power consumption.Features and BenefitsDuty cycle is 100% External pilot option allowing vacuum applications Form C or M8 electrical connection options Manifold mount Manual override with detent Maximum particle size is 5µm Oil content of compressed air is up to 5mg/m3 Operating temperature ranging between -10°C and 50°C Spool valve, non-overlappingCertificationsIP65 rated ISO 15217:2000
