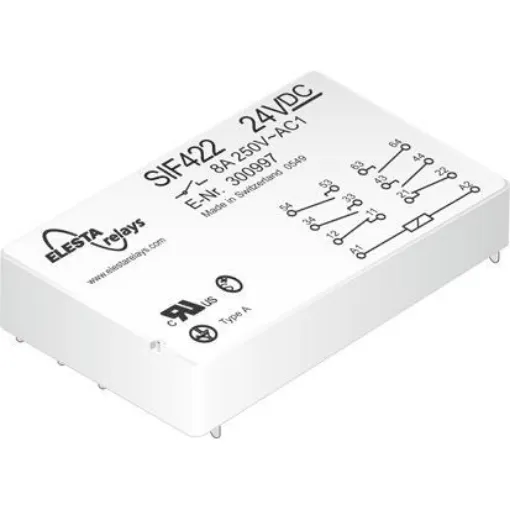

Elesta PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4PST, DPST - SIF 422 24VDC
Reliable 24V DC PCB mount relay with force-guided contacts for enhanced safety and performance.
Manufacturer part number: SIF 422 24VDC
GTIN: 5059045523819
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Contact Configuration = 4PST, DPST
Coil Resistance = 870O
Switching Current = 8A
Maximum Switching Current AC = 8 A
Maximum Switching Current DC = 8 A
Maximum Switching Voltage DC = 250V
Maximum Switching Voltage AC = 250V
Terminal Type = Through Hole
Maximum Switching Power DC = 2 kWmm
Elesta SIF Relays, 6 Contacts. PCB relay with forcibly guided contacts Circuit diagram (view on relay upper side) - Protective separation between coil and contacts (> 5.5 mm) and contacts side by side (> 5.5 mm) - EN 50205 type A - Double and reinforced insulation - SMD arrangement below relay possible - Contact mounting: SIF422 4NO/2NC - Compact height: only 10.9mm - Mean coil power 0.66W - Holding power 0.20 W - For Railway Applications EN50155
