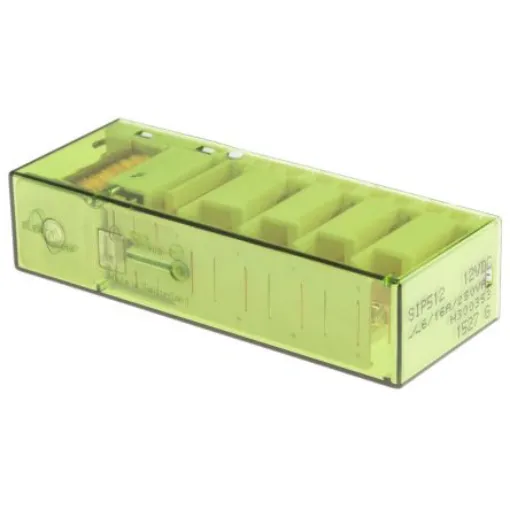

Elesta PCB Mount Force Guided Relay, 12V dc Coil Voltage, 4PST, SPST, SPST - SIP 512 12VDC
Reliable 12V DC PCB mount relay with force-guided contacts for enhanced safety and performance.
Manufacturer part number: SIP 512 12VDC
GTIN: 5059045554264
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Contact Configuration = 4PST, SPST, SPST
Coil Resistance = 110O
Switching Current = 16A
Maximum Switching Current AC = 16 A
Maximum Switching Current DC = 16 A
Maximum Switching Voltage DC = 250V
Maximum Switching Voltage AC = 480V
Terminal Type = Through Hole
Depth = 20mm
Elesta SIP Relays, 6 Contacts. PCB relay with forcibly guided contacts Circuit diagram (view on relay upper side) - Protective separation between coil/control contacts and output contacts (> 8mm) and output contacts in one row (> 8mm). - EN 50205, type A - Contact mounting: SIP512 Control contacts 1NO/1NC Output contacts 4NO SIP422 Control contacts 2NC Output contacts 4NO - Small external dimensions - Mean coil power 1.3W - Holding power 0.39W - For Railway Applications: EN 50155
