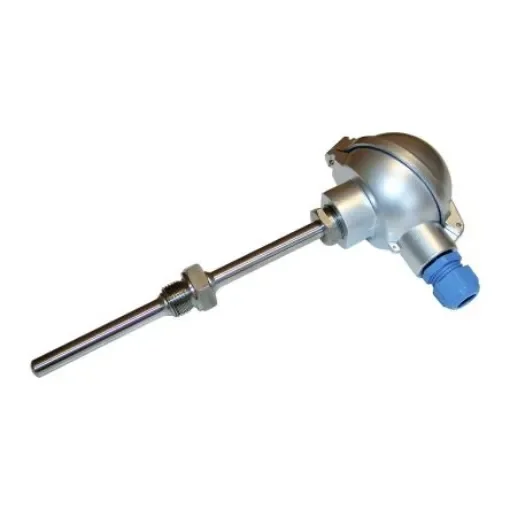

Electrotherm PT100 RTD Sensor, 11mm Dia, 100mm Long, G1/2, W0.3 +500°C Max ATEX - WT354-Exi-100

Sensor Type = PT100
Probe Length = 100mm
Probe Diameter = 11mm
Minimum Temperature Sensed = -40°C
Maximum Temperature Sensed = +500°C
Termination Type = Connection Head
Process Connection = G1/2
Hazardous Area Certification = ATEX
Accuracy = W0.3

IP54 acc. to DIN EN 60 529. Stock number 9130810 is 100mm Stock number 9130829 is 200mm. ATEX Screw In PT100 Resistance Thermometer Type 354. Resistance thermometer with an exchangeable measuring insert for screwing in. ATEX II 2/2 G Ex ia IIc T5 Ga/Gb. This thermometer comes in two lengths of 100mm and 200mm. ATEX II 2/2 G Ex ia IIc T5 Ga/Gb Protection IP54 acc. to DIN EN 60 529 Measuring range of -40 to +500 Protective tube material - 1 x Pt00. WO,3 acc. to DIN EN 60751 3 wire circuit Two Lengths available 100mm and 200mm. ATEX Resistance Thermometer
