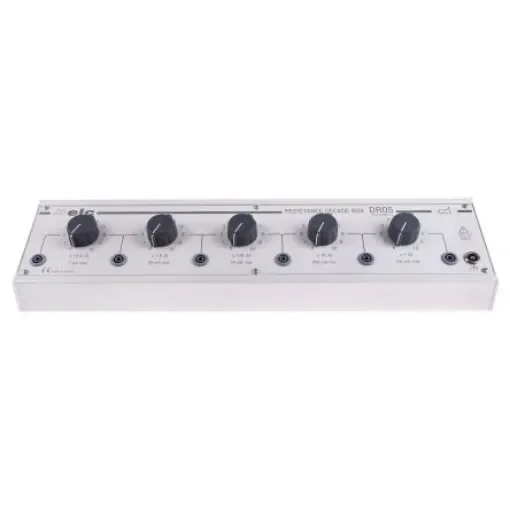

ELC Resistance Decade Box, Resistance Resolution 1O, Absolute Maximum Resistance Measurement 111.11kO - DR 05

ELC Decade Resistance BoxThe ELC decade resistance box with a metal film resistors offering typical accuracy of 0.5% and a temperature coefficient of ±50 ppm/°C. It can be adjustable via a rotary control. This is a robust metal case epoxy finish, easy to install and has robust switches with metal frame and gold-plated contact.Features and BenefitsFive decades are 1ohm, 10ohm, 100ohm, 1kohm and 10kohm Outputs on each decade via 4mm safety sockets Resistance resolution is 1ohm Maximum resistance measurement is 111.11kohm Maximum power rating is 0.5W Screen outputs (front panel and case) on safety earth socket Good long-term stability Length of 305mm, width of 96mm and height of 68.5mmCertificationsEN 61010-1 CE certified ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
