Key Features:

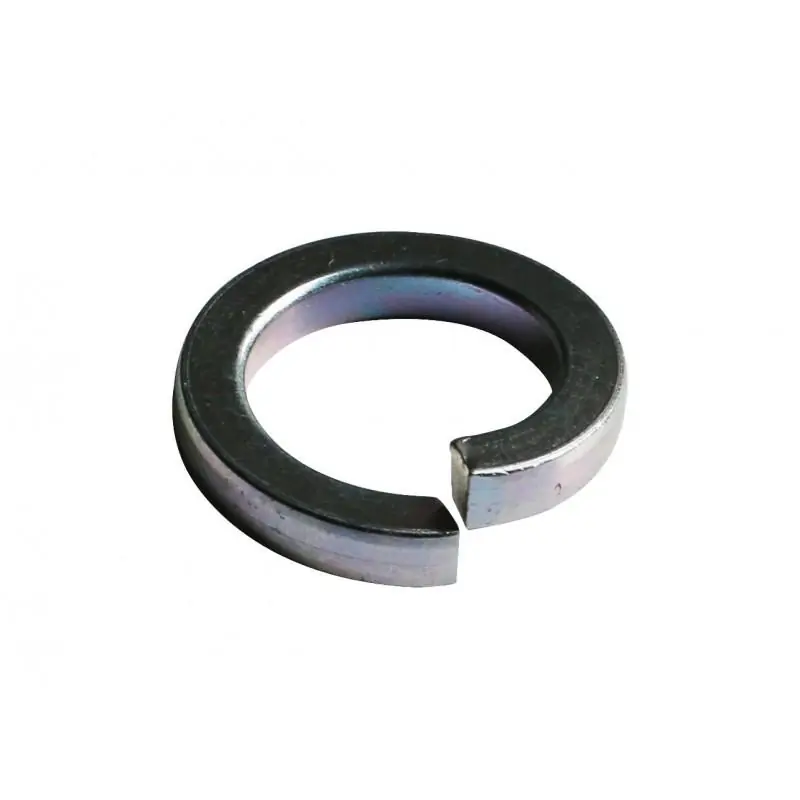

- Elastic (Spring) lock washer designed to prevent loosening of fasteners due to vibration or torque.
- Zinc-coated finish provides corrosion resistance, enhancing durability.
- Conforms to DIN 127 B, NFE 25-515, and UNI 1751B standards, ensuring consistent quality and compatibility.
Technical Specifications:
- Material: Zinc-coated steel
- Standards Compliance: DIN 127 B, NFE 25-515, UNI 1751B
Materials:
- Manufactured from steel with a zinc coating to prevent corrosion.
Dimensions:
The washer's dimensions vary based on the nominal diameter (d). Below is a table summarizing the dimensions:
| Nominal Diameter (d) | Inner Diameter (d1) | Outer Diameter (d2) | Thickness (s) | Width (b) |
|---|
| 4 | 4.1 mm | 7.6 mm | 0.9 mm | 1.5 mm |
| 5 | 5.1 mm | 9.2 mm | 1.2 mm | 1.8 mm |
| 6 | 6.1 mm | 11.8 mm | 1.6 mm | 2.5 mm |
| 8 | 8.1 mm | 14.8 mm | 2.0 mm | 3.0 mm |
| 10 | 10.2 mm | 18.1 mm | 2.2 mm | 3.5 mm |
| 12 | 12.2 mm | 21.1 mm | 2.5 mm | 4.0 mm |
| 14 | 14.2 mm | 24.1 mm | 3.0 mm | 4.5 mm |
| 16 | 16.2 mm | 27.4 mm | 3.5 mm | 5.0 mm |
| 18 | 18.2 mm | 29.4 mm | 3.5 mm | 5.0 mm |
| 20 | 20.2 mm | 33.6 mm | 4.0 mm | 6.0 mm |
Compatibility Information:
- Suitable for use with screws and bolts that correspond to the washer's nominal diameter.
- Ideal for applications requiring vibration resistance and secure fastening.
