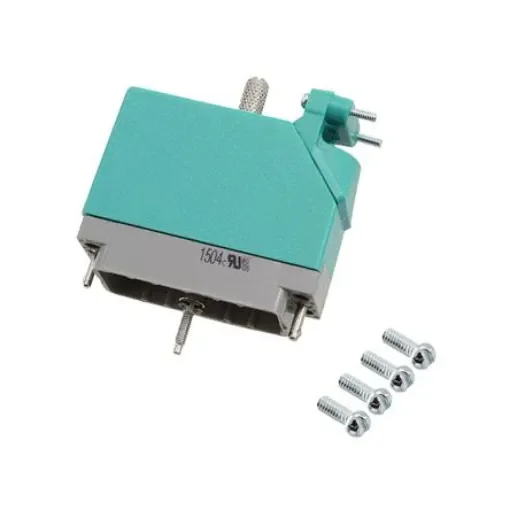

EDAC, 516 3.81mm Pitch Rectangular Connector, Male, Straight, 56 Way - 516-056-000-311

Gender = Male
Number of Contacts = 56
Body Orientation = Straight
Housing Material = PC
Pitch = 3.81mm
Contact Material = Phosphor Bronze Alloy
Contact Plating = Gold over Nickel
Current Rating = 8.5A
Voltage Rating = 2 kV ac
Series = 516
Minimum Operating Temperature = -65°C

EDAC 516 Rack and Panel Connector with Backshell. From EDAC, this 516 series rack and panel connector comes with a protective back shell, a guide pin and connecting jack screws. The connector housing is designed to use female and male contacts, which are available separately. Available in this Range. • Stock No. ; 910-8383 910-8383 is a 56 way Rack and Panel Connector Housing with a Top Entry Back Shell, Guide Pin and Jack Screws • Stock No. ; 910-8386 910-8386 is a 56 way Rack and Panel Connector Housing with a Side Entry Back Shell, Guide Pin and Jack Screws
