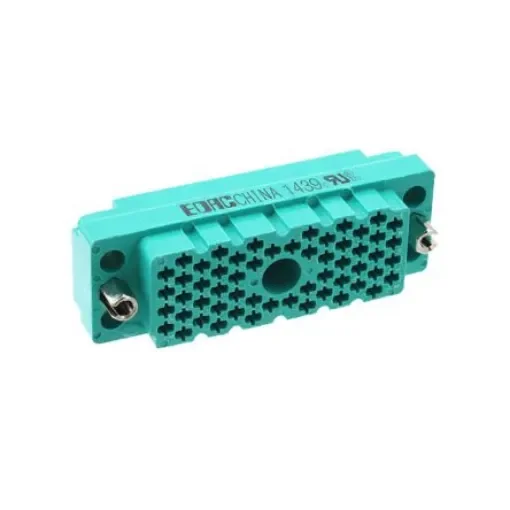

EDAC, 516 3.81mm Pitch Rectangular Connector, Female, Straight, 56 Way - 516-056-000-202
Reliable EDAC 3.81mm pitch rectangular connector with 56 contacts for secure connections.
Manufacturer part number: 516-056-000-202
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Gender = Female
Number of Contacts = 56
Body Orientation = Straight
Housing Material = DAP
Pitch = 3.81mm
Contact Material = Phosphor Bronze Alloy
Contact Plating = Gold over Nickel
Current Rating = 8.5A
Voltage Rating = 2 kV ac
Series = 516
Minimum Operating Temperature = -65°C
Rack and Panel Receptacle Connector Housing. From EDAC, the cable mounting rack and panel connector housing incorporates an actuating screw to facilitate connection with a corresponding connector. Crimp, solder and wire wrap contacts are available for this connector housing, and are sold separately.
