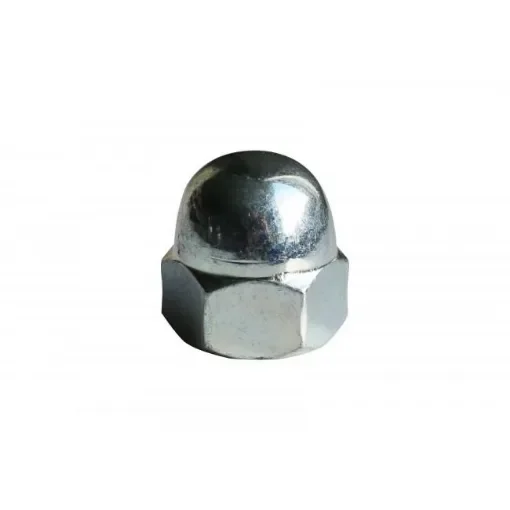

The Blind Nut Zinc M is a galvanized steel acorn cap nut designed to cover the end of a threaded bolt, providing a clean and finished appearance while protecting the thread from corrosion. Manufactured by ECR BORGNES, this nut adheres to DIN 1587 standards, ensuring professional quality and compatibility with similar products.
- Galvanized Steel Construction: The nut is made from galvanized steel, offering enhanced resistance to corrosion and extending the lifespan of the fastening.
- Acorn Cap Design: Featuring a domed end, also known as a crown or dome nut, it provides a smooth finish and prevents snagging.
- DIN 1587 Compliance: Meets the DIN 1587 standards, ensuring uniformity and compatibility with other fasteners adhering to the same specifications.
Technical Specifications:
| Nominal Diameter (d) | Thread Pitch (m) | Height (h) | Width Across Flats (e) | Thickness (s) |
|---|
| M4 | 0.7 | 8 mm | 7.66 mm | 3.2 mm |
| M5 | 0.8 | 10 mm | 8.79 mm | 4 mm |
| M6 | 1.0 | 12 mm | 9.5 mm | 5 mm |
| M8 | 1.25 | 15 mm | 14.38 mm | 6.5 mm |
| M10 | 1.5 | 18 mm | 18.9 mm | 8 mm |
| M12 | 1.75 | 22 mm | 21.1 mm | 10 mm |
Materials:
- Nut Body: Galvanized steel, providing durability and corrosion resistance.
Dimensions:
- Nominal Diameters: Available in M4, M5, M6, M8, M10, and M12 sizes.
- Thread Pitch: Corresponding to the nominal diameter, ranging from 0.7 mm for M4 to 1.75 mm for M12.
- Height (h): Varies from 8 mm for M4 to 22 mm for M12.
- Width Across Flats (e): Ranges from 7.66 mm for M4 to 21.1 mm for M12.
- Thickness (s): From 3.2 mm for M4 to 10 mm for M12.
Compatibility Information:
The Blind Nut Zinc M is compatible with screws and bolts of corresponding nominal diameters and thread pitches, ensuring a secure and reliable fastening.
