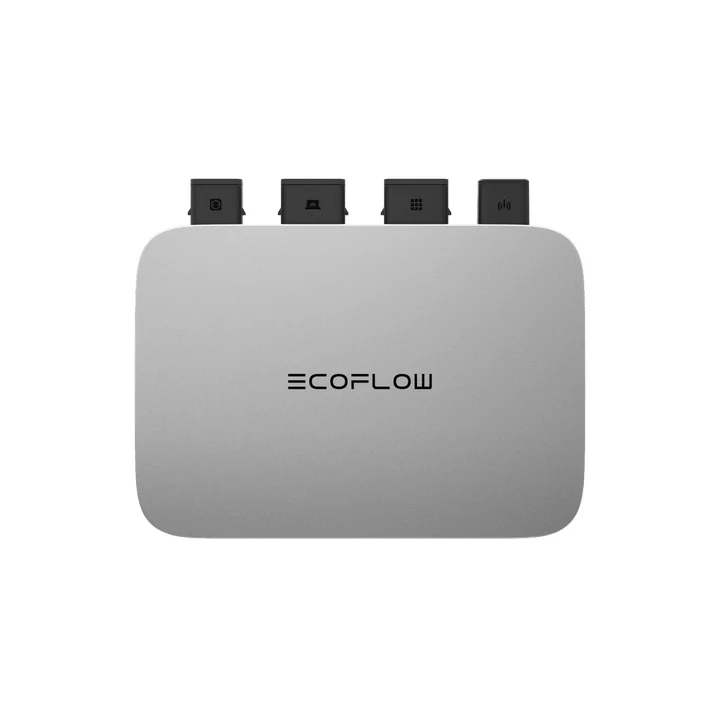

The EcoFlow PowerStream Microinverter is an intelligent and connected solar micro-inverter designed to integrate seamlessly with EcoFlow portable power stations, enabling efficient solar energy utilization for residential applications.
- Solar Energy Integration: Captures solar energy through photovoltaic panels (sold separately) and stores it in a compatible EcoFlow portable power station, providing usable energy during the day, night, or power outages.
- MPPT Technology: Employs Maximum Power Point Tracking (MPPT) to optimize solar energy production based on varying weather conditions.
- Grid Compliance: Supports a maximum input power of 800W (2 x 400W) and a maximum output power of 800W, with the capability to transition from 600W to 800W to comply with local grid connection requirements.
- Remote Control and Monitoring: Connects to the electrical grid via a standard socket and can be controlled remotely through the EcoFlow app or EcoFlow Smart Plugs (sold separately), allowing real-time monitoring of energy consumption, savings, and system status.
- Smart Plug Integration: Enables remote or scheduled operation of connected devices via the app, with real-time energy consumption monitoring.
Technical Specifications:
- Dimensions: 242 mm x 169 mm x 33 mm
- Weight: Approximately 3 kg
- PV Input Power: 400W x 2
- DC Input Output: 600W
- Maximum Input Voltage: 55V DC (PV Port) / 59V DC (DC Port)
- Maximum Input Current: 13 A
- AC Output (Grid Tied): 800W / 600W
- Maximum AC Output Current: 2.8A / 3.7A
- Maximum Charging & Discharging Power: 600W
- Charging Voltage: 30 – 58 V DC
- Ingress Protection Rating: IP67
- Wi-Fi (2.4G): Frequency range: 2412 – 2472 MHz (20 MHz) / 2422 – 2462 MHz (40 MHz); Maximum output power: ≤ 20 dBm
- Bluetooth®: Frequency range: 2402 – 2480 MHz; Maximum output power: ≤ 20 dBm
Compatibility Information:
- EcoFlow Portable Power Stations: Compatible with all EcoFlow portable power stations, including DELTA 2, DELTA 2 Max, DELTA Pro, and RIVER Series. Different cables are required for connection:
- DELTA 2, DELTA 2 Max, DELTA 2 Max Extra Battery, and DELTA Max: EcoFlow BKW-DELTA EB Cable
- DELTA Pro and DELTA Pro Extra Battery: EcoFlow BKW-DELTA Pro Cable
- RIVER Series Power Stations: EcoFlow BKW-RIVER Cable
- Solar Panels: Supports third-party solar panels, provided they meet the input voltage requirements. Input voltage exceeding the specified range may cause permanent damage to the microinverter.
Additional Details:
- Smart Home Integration: EcoFlow Smart Plugs can integrate with Apple, Amazon, Google, Samsung, and other Matter-compliant smart home systems.
- Installation: Designed for easy installation without the need for drilling, utilizing a Super Flat Cable to connect solar panels to the microinverter inside your home.
- Off-Grid Use: Suitable for off-grid applications such as camping trips or motorhome travel when paired with a compatible portable power station.
- Safety Features: Equipped with over-temperature protection to ensure safety during operation.
