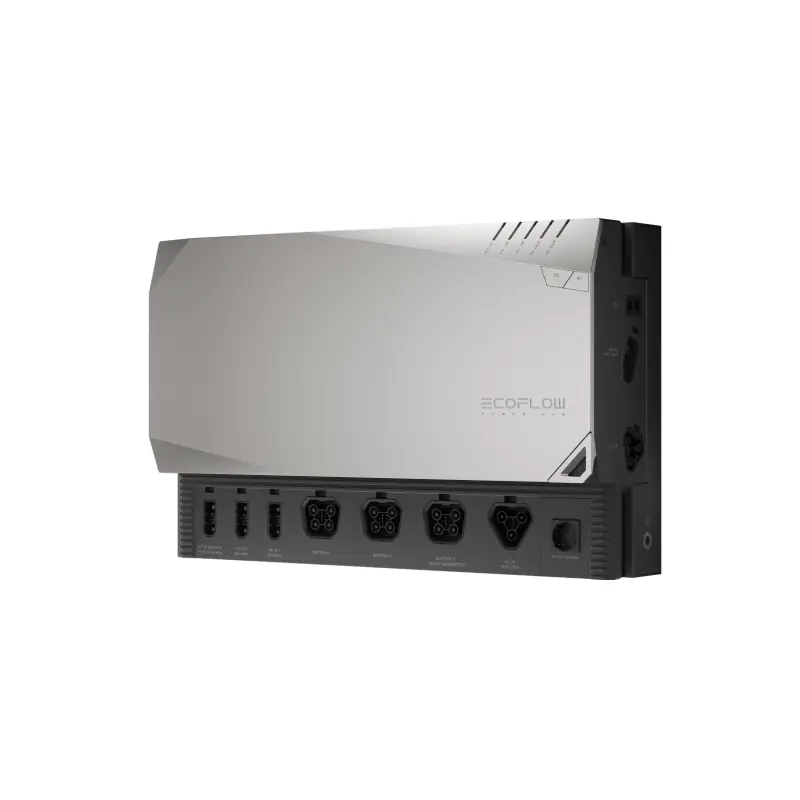

The EcoFlow Power Hub 5kVA is an integrated, plug-and-play 48V off-grid power solution designed for camper vans, motorhomes, trailers, and RVs. It combines multiple functions into a single unit, offering a comprehensive energy management system for off-grid living.
- Plug-and-Play Design: Integrates two MPPT solar charge controllers, a battery charger with MPPT, a DC/DC step-down converter, and an inverter-charger into one compact unit.
- Charging Flexibility: Supports four charging methods:
- Solar up to 4800W
- Alternator up to 1000W
- Electric socket 3000W
- Smart generator 1800W
- Smart Energy Management: Allows for intelligent monitoring and control via the EcoFlow app, enabling users to manage energy usage efficiently.
- Advanced Safety Features: The 48V system reduces current flow, minimizing heat and energy loss, and enhancing overall safety.
Technical Specifications:
- AC Output (Discharge Only): 120V~4000W, 5000VA, 60Hz (Surge 10KVA)
- AC Output (Bypass Mode): 100-120V~50A Max, 50/60Hz
- X-Fusion (Power Assist): 33.3A Max, 5000VA Max
- DC Output (12V/24V): 13.6V⎓100A Max, 1360W Max; 26.4V⎓60A Max, 1584W Max
- 48V DC Output / Smart Generator (48V): 51.2V⎓55A Max
- USB A Output: 5V⎓2.4A Max
- EF BUS Output (x2): 12V⎓Total 1.2A Max
- Total Output: 8752W Max
- AC Input (Charge Only): 100-120V~4000W Max, 50Hz/60Hz
- AC Input (Bypass Mode): 100-120V~50A Max
- Alternator Input 1 / PV Input 1: 13-60V⎓100A Max, 4000W Max
- Alternator/PV Input 2/3: 13-60V⎓30A Max, 1600W Max
- BATTERY 3 / Smart Generator: 40-57.6V=100A Max
- 48V DC Output / Smart Generator (48V): 40-57.6V=70A Max
- Charge: 40-57.6V⎓100A Max per port, total 270A Max
- Discharge: 40-57.6V⎓100A Max per port, total 181A Max
- Operating Temperature: -25°C to 60°C (-13°F to 140°F), derating >40°C (104°F)
- Discharging Temperature: -25°C to 60°C (-13°F to 140°F), derating >40°C (104°F)
- Storage Temperature: -25°C to 70°C (-13°F to 158°F)
- Operating Humidity: 0%-95% RH (non-condensing)
- Altitude: <2,000 m (6,562 ft)
- Warranty: 5 Years
Materials:
Constructed with durable materials to ensure longevity and reliability in various environmental conditions.
Dimensions:
- Product Dimensions: 300 x 480 x 151 mm (11.8 x 18.9 x 5.9 in)
- Product Weight: 15.7 kg (34.6 lb)
Compatibility Information:
Compatible with EcoFlow's LFP batteries, available in 2kWh and 5kWh capacities. Supports integration with EcoFlow's Smart Distribution Panel and Console for enhanced control and monitoring.
