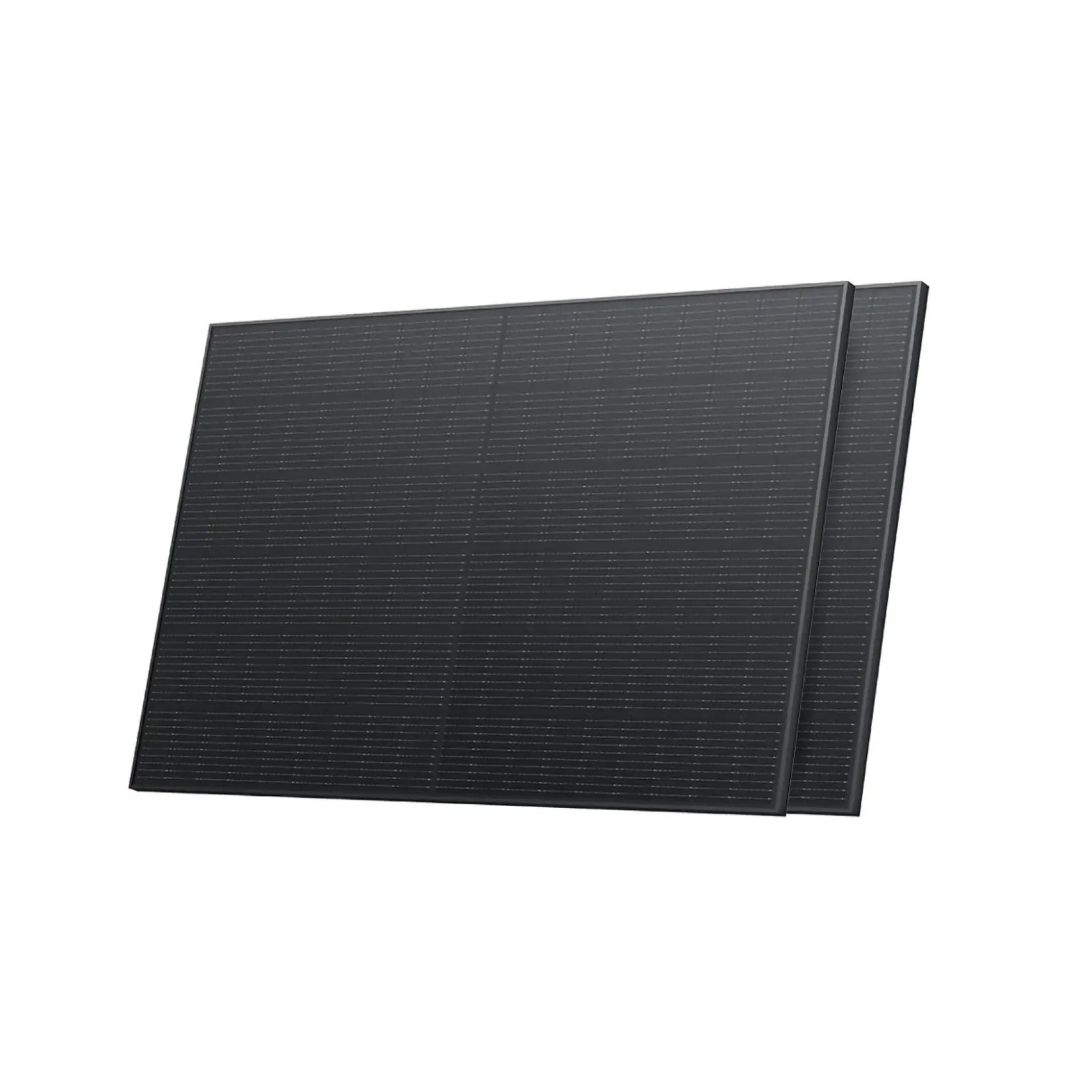

The EcoFlow 100W Rigid Solar Panels are designed to efficiently capture solar energy, providing a reliable power source for various applications.
- High Solar Efficiency: Each panel boasts a 23% conversion rate, ensuring rapid charging capabilities.
- Sleek Design: The all-black panels integrate seamlessly into diverse environments, offering both functionality and aesthetic appeal.
- Exceptional Durability: With an IP68 waterproof rating, these panels are built to withstand harsh outdoor conditions, including dirt, low-pressure water jets, and extreme weather.
- Easy Installation: Pre-drilled mounting holes facilitate straightforward setup, making them suitable for various configurations.
Technical Specifications
- Cell Type: Monocrystalline Silicon
- Rated Power: 100W per panel
- Open Circuit Voltage (Voc): 20.3 V
- Short Circuit Current (Isc): 6.3 A
- Maximum Operating Voltage: 17.1 V
- Maximum Operating Current: 5.9 A
- Temperature Coefficient of Rated Power: -0.39%/°C
- Temperature Coefficient of Open Circuit Voltage: -0.33%/°C
- Temperature Coefficient of Short Circuit Current: 0.06%/°C
- Maximum System Voltage: 600 VDC (UL)
- Maximum Fuse Current: 15 A
Materials
- Frame: Anti-corrosive aluminum
- Surface: Tempered glass with protective lamination
Dimensions
- Panel Dimensions: 98 cm x 58.6 cm x 3 cm (38.6 in x 23.1 in x 1.2 in)
- Weight: 6.2 kg (13.7 lbs) per panel
Compatibility Information
These panels are compatible with EcoFlow's Power Kits and portable power stations, as well as other 48V power systems and third-party solar setups.
What's in the Box
- 2 x 100W Rigid Solar Panels
- User Manual
- Warranty Card
