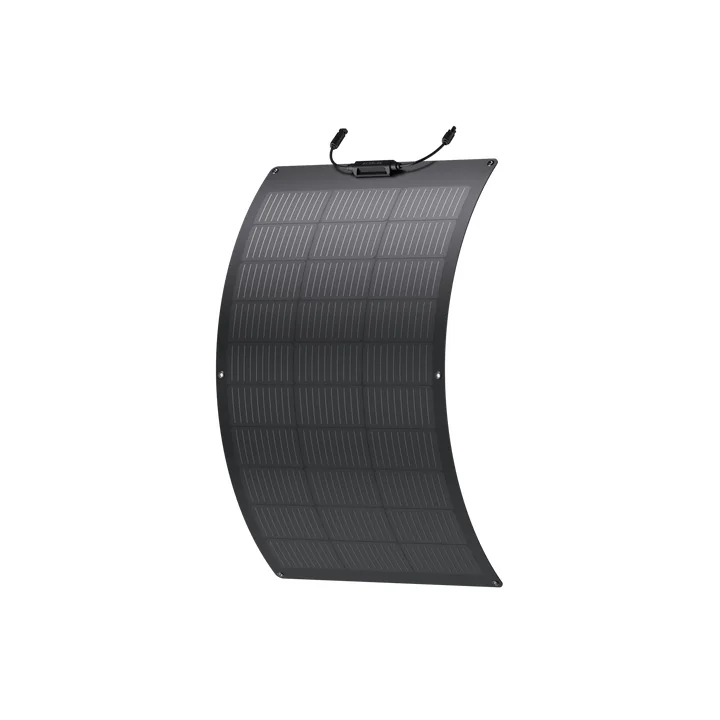

The EcoFlow 100W Flexible Solar Panel is a lightweight and adaptable solution for harnessing solar energy on the go. Designed to conform to various surfaces, it is particularly suitable for applications such as RVs, boats, and other vehicles with curved roofs.
- Lightweight and Flexible: Weighing approximately 2.3 kg (5.1 lbs), this panel is about 70% lighter than traditional solar panels. It can flex up to 258 degrees, allowing it to fit the unique shape of your vehicle without compromising solar input.
- High Efficiency: Utilizing 182 monocrystalline silicon cells, the panel achieves a conversion efficiency of 23%, enabling faster charging of batteries or portable power stations.
- Durable Construction: Protected by a reinforced fiberglass film and an IP68 waterproof rating, the panel is designed to withstand various environmental conditions, including exposure to rain, humidity, and dust.
- Easy Installation: Equipped with pre-cut eyelets, the panel can be securely mounted using hooks or adhesive, facilitating straightforward installation on diverse surfaces.
- Universal Compatibility: The panel includes a universal solar charging cable, making it compatible with most 48V power systems or portable power stations available in the market.
Technical Specifications
- Rated Power: 100W (+/-5W)
- Open Circuit Voltage: 20.3V
- Short Circuit Current: 6.3A
- Maximum Operating Voltage: 17.1V
- Maximum Operating Current: 5.9A
- Temperature Coefficient of Rated Power: -0.39%/°C
- Temperature Coefficient of Open Circuit Voltage: -0.33%/°C
- Temperature Coefficient of Short Circuit Current: 0.06%/°C
- Maximum System Voltage: 600 VDC (UL)
- Maximum Fuse Current: 15A
Materials
- Solar Cells: Monocrystalline silicon
- Protective Coating: Reinforced fiberglass film
- Waterproof Rating: IP68
Dimensions
- Length: 105.5 cm (41.5 inches)
- Width: 61.2 cm (24.1 inches)
- Thickness: 2.5 cm (1.0 inch)
Compatibility Information
The EcoFlow 100W Flexible Solar Panel is compatible with most 48V power systems and portable power stations, making it a versatile addition to various energy setups.
