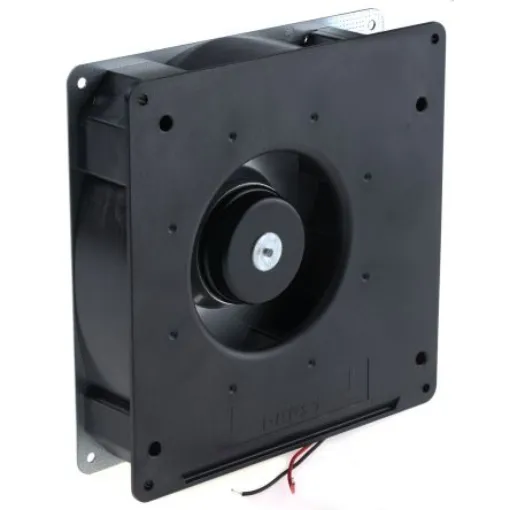

ebm-papst RG 125 N Series Centrifugal Fan, 12 V dc, 87.5m³/h, DC Operation, 180 x 180 x 40mm - RG125-19/12N

ebm-papst Centrifugal FanThe ebm-papst centrifugal fan has an airflow of 87.5m³/h and a supply voltage rating of 12VDC. It is enabled with a speed signal, a ball bearing and a wire leaded power connection. It has a scroll housing made up of fibreglass-reinforced plastic and a fibreglass-reinforced plastic impeller. It is 180mm long, 180mm wide and 40mm deep. Axial air intake, centrifugal air exhaust out of the outlet direction of airflow with single strands 22AWG, TR 64 leads and the backwards-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up.Features and BenefitsAirflow is at right angles to the intake High static pressure capabilities Connections are wire ended Locked rotor protection Ball bearing type High temperature low power operation Protection against reverse polarity and blocked rotor Commutation type is electronicApplicationsCentral air conditioning units or building ventilation systems Automobile Railway Electronic products Medical treatment Household Ventilation Air conditioning Refrigeration systemCertificationsUL approved CSA certified VDE approved CE certified
