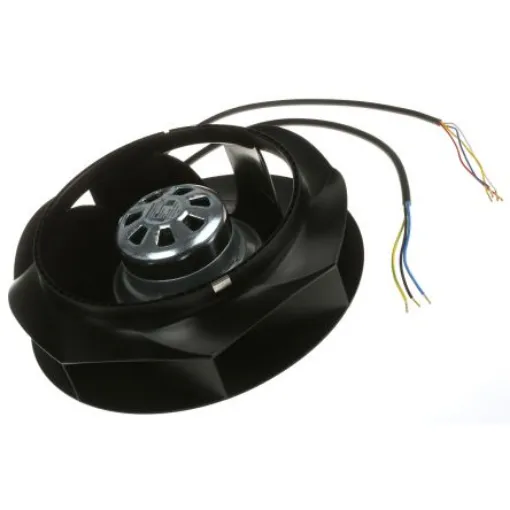

ebm-papst RadiCal Series Centrifugal Fan, 230 V ac, 1015m³/h, AC Operation, 220 (Dia.) x 71mm - R3G220-RC05-03

ebm-papst Centrifugal FanThe ebm-papst single inlet centrifugal fan has an airflow of 1015m³/h (for 50Hz) at a fan speed of 2815rpm and has a supply voltage rating of 230VAC. This is integrated within the impeller reduces installation dimensions. The fan is featured with backwards-curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. It is 220mm wide and 71mm deep. The robust and space-saving design makes it versatile and easy to use. Supplied with Inlet ring.Features and BenefitsElectronically commutated motor blower with an external rotor motor Low-pressure centrifugal solutions Fitted with highly efficient GreenTech EC motor Class B insulation Material of impeller is PA plastic Material of electronics housing is die-cast aluminium Aerodynamic shape reduces noise emissions Hybrid construction makes impellers highly corrosion-resistant EC control options availableApplicationsControl cabinet cooling In-line duct fans Home ventilation units Heat pumpsCertificationsIP54 rated EN 60335-1 CCC certified
