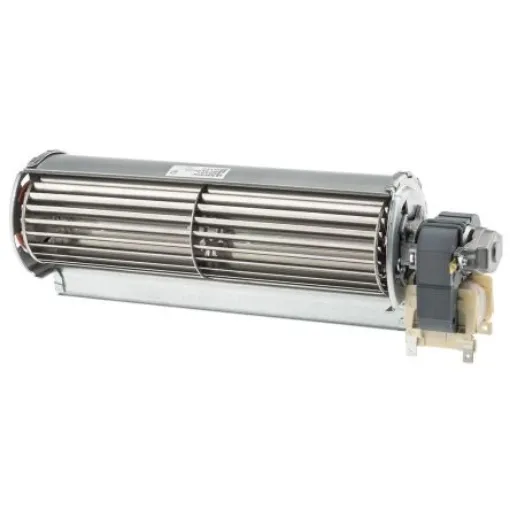

ebm-papst QLZ Series Tangential Centrifugal Fan, 230 V ac, 120m³/h, AC Operation, 96 x 317 x 83mm - QLZ06/2400A47 -3020LH-25ZX
High-efficiency tangential fan with 120m³/h airflow and low noise operation.
Manufacturer part number: QLZ06/2400A47 -3020LH-25ZX
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 230 V ac
Blower Type = Tangential
AC or DC Operation = AC
Air Flow = 120m³/h
Series = QLZ
Height = 96mm
Width = 317mm
Depth = 83mm
Dimensions = 96 x 317 x 83mm
Fan Speed = 1100rpm
Noise Level = 33dB
Bearing Type = Sleeve
ebm-papst AC Tangential BlowerThe ebm-papst high tech, AC tangential blower has an airflow of 120m³/h (for 50Hz) at 1100rpm fan speed and has a supply voltage rating of 230VAC. It offers a reliable and versatile solution to a variety of requirements. The exceptional features of ebm-papst tangential blowers are the high airflow at relatively low counter pressures and very good noise characteristics. Also, the unit can be mounted either horizontally or vertically, with the motor at the bottom. Applications include stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. It is 96mm long, 371mm wide and 83mm deep.Features and BenefitsImpeller diameter of 60mm High-efficiency Low noise (48dB) Almost whirl-free airstream flow Shaded pole motorsCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
