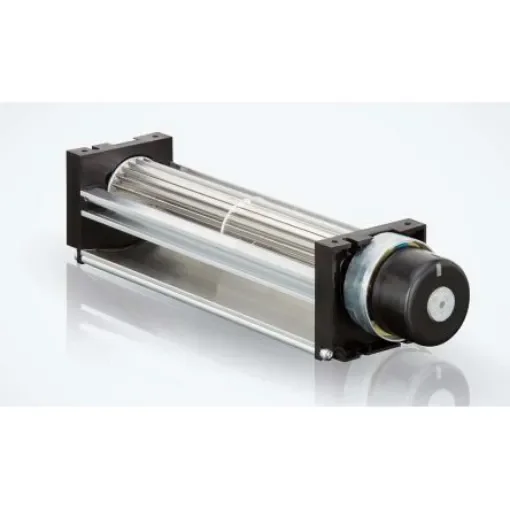

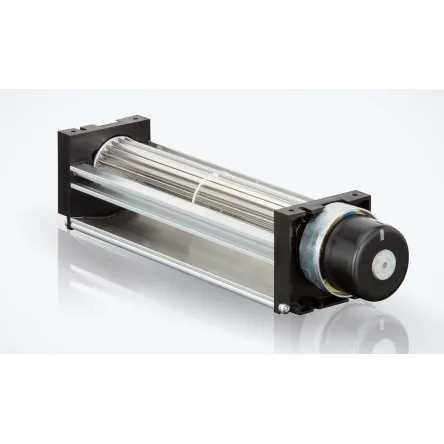

ebm-papst QG 030 Series Tangential Centrifugal Fan, 24 V dc, 100m³/h, DC Operation, 47.5 x 258 x 50mm - QG030-198/14
Compact and efficient 24V DC tangential fan with 100m³/h airflow for versatile mounting.
Manufacturer part number: QG030-198/14
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
Blower Type = Tangential
AC or DC Operation = DC
Air Flow = 100m³/h
Series = QG 030
Height = 47.5mm
Width = 258mm
Depth = 50mm
Dimensions = 47.5 x 258 x 50mm
Fan Speed = 4250rpm
Noise Level = 51dB
Bearing Type = Ball
Commutation Type = Electronic
Termination Type = Lead Wire
ebm-papst Tangential BlowerThe ebm-papst tangential crossflow blower has an airflow of 100m³/h and a supply voltage rating of 24VDC. It is 47.5mm long, 258mmwidth and 50mm deep. It has a washable filter, an internal filter guard and front grill with fixings. This is compact and highly efficient, this ebm-papst rack crossflow fan is built with high-quality solid aluminium. The unit can be mounted either horizontally or vertically, with the motor at the bottom.Features and BenefitsImpeller made of aluminium PSC (permanent split capacitor) motor, bearings in motor and counter-bearing are ball-bearing Extrusion made of aluminium End plates finished in black powder coat paint Electrical connections via a terminal block Blowers with grill include filter mediaCertificationsIP20 rated UL approved CE certified
