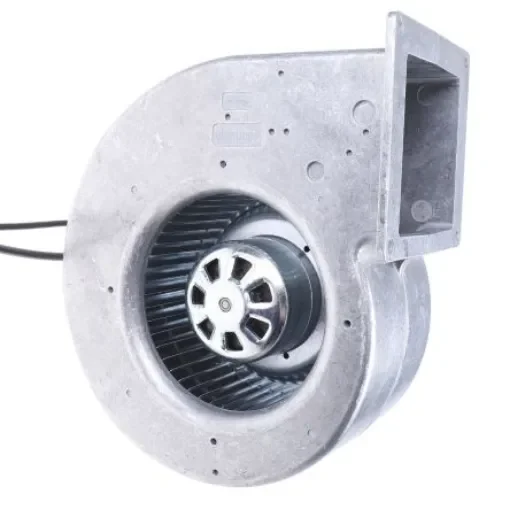

ebm-papst G3G Series Centrifugal Fan, 230 V ac, 650m³/h, AC Operation, 248.5 x 227 x 130mm - G3G146-FK07-02
High-performance ebm-papst G3G centrifugal fan with 650m³/h airflow for efficient ventilation.
Manufacturer part number: G3G146-FK07-02
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 230 V ac
Blower Type = Centrifugal
AC or DC Operation = AC
Air Flow = 650m³/h
Series = G3G
Height = 248.5mm
Width = 227mm
Depth = 130mm
Dimensions = 248.5 x 227 x 130mm
Fan Speed = 2320rpm
Noise Level = 70dB
Bearing Type = Ball
Mounting Hole Spacing = 105 x 115mm
Better World Product = Yes
Sensor Type = Open Collectormm
ebm-papst Centrifugal FanThe ebm-papst single inlet centrifugal fan has an airflow of 650m³/h (for 50Hz) at a fan speed of 2320rpm and a supply voltage ranging from 200VAC to 240VAC. The external rotor motor is integrated within the impeller, therefore reducing installation dimensions. It has featured forwarding curved blades ideal for a wide range of applications. The scroll housing is open on both sides for added efficiency and a reduction in noise level. It is 248.5mm long, 227mm width and 130mm deep. The robust and space-saving design makes them versatile and easy to use.Features and BenefitsMotors are sealed for life Maintenance free Class B insulation Ball bearing type may be mounted in any position Noise level is 70dB Fitted with highly efficient GreenTech EC motor Intelligent electronics for numerous control functions Wide voltage range Robust design and maintenance free operation Long service life\ApplicationsCentral air conditioning units or building ventilation systems Automobile Railway Electronic products Medical treatment Household Ventilation Air conditioning Refrigeration systemCertificationsEN 60335 CE certified IP54 rated
