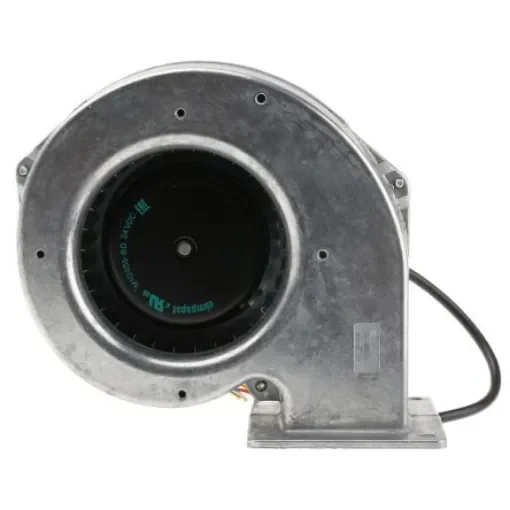

ebm-papst G1G108 Series Centrifugal Fan, 24 V dc, 225m³/h, DC Operation, 183 x 159 x 115mm - G1G108-AB17-02
High-performance 24V DC centrifugal fan with 225m³/h airflow and compact design.
Manufacturer part number: G1G108-AB17-02
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
Blower Type = Centrifugal
AC or DC Operation = DC
Air Flow = 225m³/h
Series = G1G108
Height = 183mm
Width = 159mm
Depth = 115mm
Dimensions = 183 x 159 x 115mm
Fan Speed = 3000rpm
Noise Level = 65dB
Bearing Type = Ball
Mounting Hole Spacing = 66 x 97mm
Commutation Type = Electronic
Mounting Hole Diameter = 8mm
ebm-papst Centrifugal BlowerThe ebm-papst 24VAC centrifugal single inlet, high-performance fan motor blower comes with an external rotor motor. This single inlet centrifugal blower is integrated within the impeller that reduces installation dimensions. It is constructed from die-cast aluminium. This blower is rugged and has a long life. It is 183mm long, 159mm wide and 115mm deep. This fan has a speed of 3000rpm and airflow of 225m³/h. Note: To prevent overloading the motor, this blower must be operated against the minimum static pressuresFeatures and BenefitsHigh performance fan with an external rotor motor Sealed for life Maintenance free Class B insulation Impeller is forward curved multi-vane type Scroll die-cast with motor capacitor, mounting flange and finger guard/filter fixings Ball bearing type and can be mounted in any position With housing (flange)ApplicationsIndustrial use Central air conditioning units or building ventilation systems AutomobilesCertificationsCE certified CSA C22.2 certified UL 1004-1 approved
