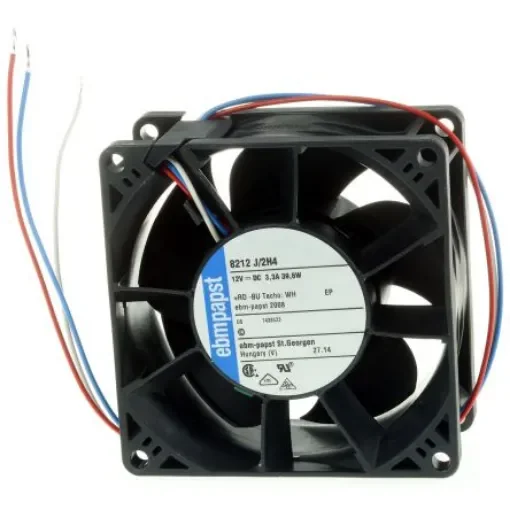

ebm-papst 8200 J Series Axial Fan, 12 V dc, DC Operation, 222m³/h, 39W, 80 x 80 x 38mm - 8212J/2H4

Supply Voltage = 12 V dc
Height = 80mm
Power Consumption = 39W
Depth = 38mm
Dimensions = 80 x 80 x 38mm
Noise Level = 71dB
Fan Speed = 14000rpm
Sensor Type = Tachometer
Bearing Type = Ball

Manufacturer part number suffix 'P' indicates PWM controllable DCP fan controllers are available separately: stock nos ; 6670377 6670377 , ; 6670371 6670371 , ; 6670380 6670380 , ; 6670383 6670383 , ; 6670387 6670387 , ; 6670396 6670396. S-Force High Performance Compact Fans. The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications. This fan series is particularly suitable for the cooling of high-performance electronic components, such as those in servers, TCA systems, telecommunication devices, inverter drives and many other industrial applications. • Performance from 600m³/h to a maximum of 930m³/h, depending on model • PWM control input • Open-collector tachometer signal output as standard • Compatible with DCP and TMS controllers • S-Force family
