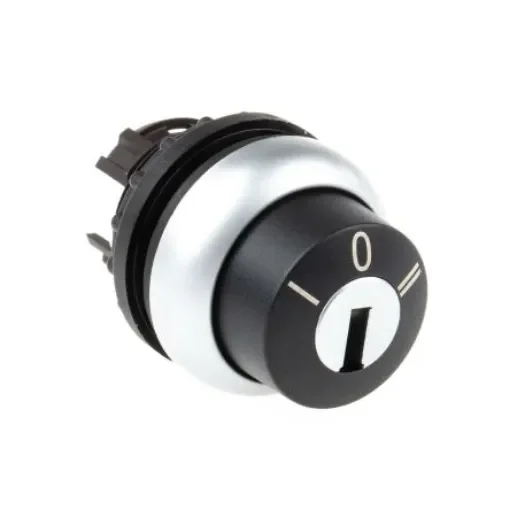

Eaton RMQ Titan 3-position Key Switch Head, Latching, 22mm Cutout - 78635857 M22-WRS3+M22-A

Series = RMQ Titan
Cutout Diameter = 22mm
Number of Positions = 3
Key Type = MS1
Key Withdrawal Position = O + II
Case Colour = Black
IP Rating = IP66
Angle of Throw = 60°
Illuminated = No
Number of Keys = 1
Maximum Operating Temperature = +70°C
Mechanical Life = 100000Operations
Minimum Operating Temperature = -25°C

Eaton M22-WRS3 Key-operated actuator This key operated selector switch, also known as a rotary key switch, has 3 positions (with plunger bridge engineering). Offering an IP rating of IP66 which provides complete protection against contact (dust-tight) and against powerful water jets with increased pressure. It has a hole diameter cut-out of 22.5 mm. It can be changed from a stay put to a spring return function with the use of coding parts and key withdraw convertible with coding adaptors, please see datasheet for further details on this. Features and Benefits: RMQ-Titan (drilling dimensions 22.5 mm) 3 positions (with plunger bridge engineering) Individual lock mechanism MS1 Stay-put/spring-return function, can be changed with coding parts M22- XC-Y Key withdraw convertible with coding adapters M22-XC-.. Switching function latching IP66 protection rating Titanium front ring
