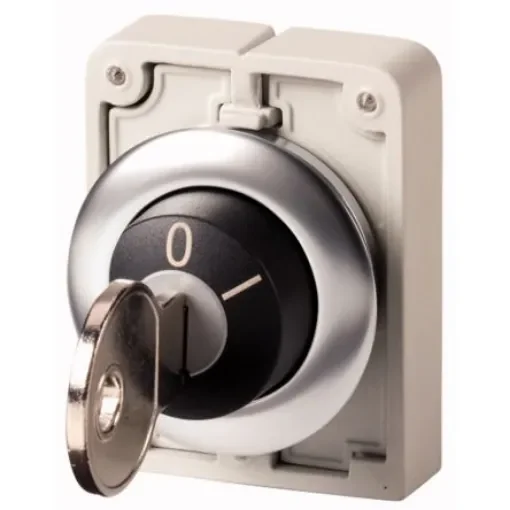

Eaton RMQ Titan 2-position Key Switch Head, Momentary, 30mm Cutout - 187068 M30C-FWS
Eaton RMQ Titan Key Switch provides reliable momentary operation with a robust, ergonomic design.
Manufacturer part number: 187068 M30C-FWS
GTIN: 4015081821297
Series = RMQ Titan
Cutout Diameter = 30mm
Number of Positions = 2
Key Withdrawal Position = O
IP Rating = IP66
Angle of Throw = 40°
Number of Keys = 1
Maximum Operating Temperature = +70°C
Minimum Operating Temperature = -25°C
Eaton M30 Flat Front Key Switches. Eaton M30 Flat Front key switches combine a robust switch with ease of use, ensuring that machines can benefit from an elegant industrial design. The ergonomic design is shaped with fingertips in mind, while also providing a heavy-duty device that can withstand exposure to dirt and water. Features and Benefits. Maintained or Momentary options available. Metal bezel. IP66 rated. SmartWire-DT compatible. 30 mm mounting diameter. The RMQ-Titan modular system allows the push buttons to be used with any accessory from the RMQ-Titan range. The Flat Rear contact blocks offer a reduced mounting depth. (See example stock number ; 124-5192 124-5192 ). SmartWire DT contact blocks connect the push buttons to an innovative communication system for industrial switchgear. (See example stock number ; 760-4646 760-4646 )
