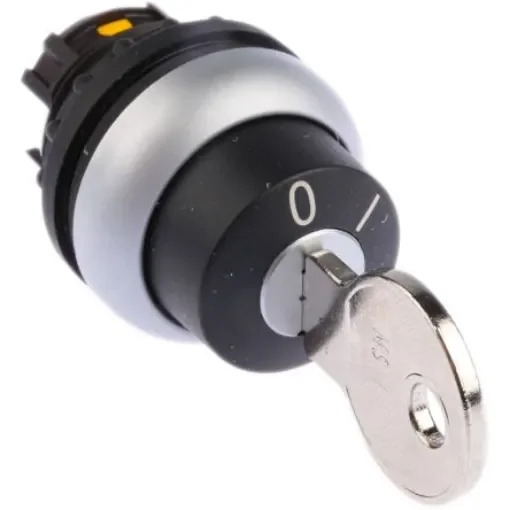

Eaton RMQ Titan 2-position Key Switch Head, Momentary, 23mm Cutout - 216881 M22-WS

Series = RMQ Titan
Cutout Diameter = 23mm
Number of Positions = 2
Key Withdrawal Position = O
IP Rating = IP66
Angle of Throw = 40°
Illuminated = No
Number of Keys = 1
Maximum Operating Temperature = +70°C
Minimum Operating Temperature = -25°C

Eaton Key Operated Switch Head - M22 Series. Eaton's M22 range of key-operated actuator heads are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these key switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection. Features and Benefits. • Mechanical lifespan of over 1,000,000 operations • IP66 rating, offering protection against solids, such as dust, and liquids • Operating temperature range of -25°C to +70°C • Single key switch actuator head • Titanium front ring • Standard panel cutout diameter of 22.5 mm for easy installation • Supplied with 1 key •Key removable in position 0. Uses and Applications. • Dangerous electronics and equipment such as motors that require human intervention to operate. • Public buildings to control lighting in restrooms, corridors etc.
