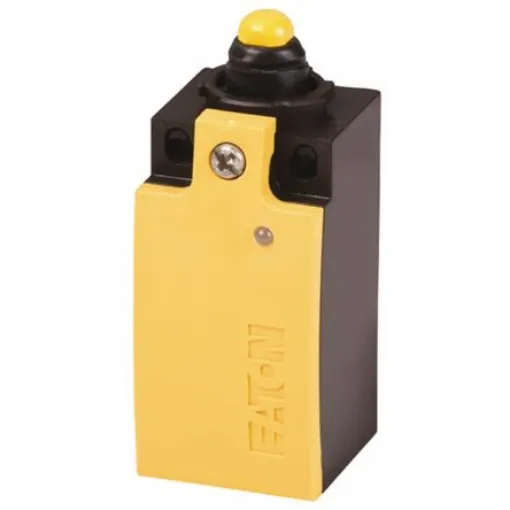

Eaton LS-Titan Series Plunger Limit Switch, NO/NC, IP66, IP67, Plastic Housing, 200mA Max - 266121 LSE-11

Actuator Type = Plunger
Normal State Configuration = NO/NC
IP Rating = IP66, IP67
Maximum Current = 200mA
Housing Material = Plastic
Maximum DC Voltage = 30V
Series = LS-Titan
Action Type = Snap Action
Length = 76mm
Minimum Operating Temperature = -25°C

Eaton Plastic Body Titan Limit Switch. This range of easy to use limit switches by Eaton offer a variety of compact safety position switches to suit worldwide application. Features and Benefits. Eaton's limit switch has an IP66 protection rating in plastic bodies Operating heads can be installed in a choice of 8 positions The limit switch is suitable for use with electronic devices The switches have maintenance-free and vibration proof cage clamp terminals Standard action or snap-action contacts, with early break (EB) or late break (LB) options available Interlocked opposing contacts for positive operation LSE versions include an electronically adjustable operating point and visible status display. Uses and Applications. A limit switch is made up of an actuator head, switch body and receptacle, and is used to control machinery as part of a control system in many types of industrial applications. Limit switch uses include: Escalators Food and beverage industry Electrical assembly equipment Material handling
