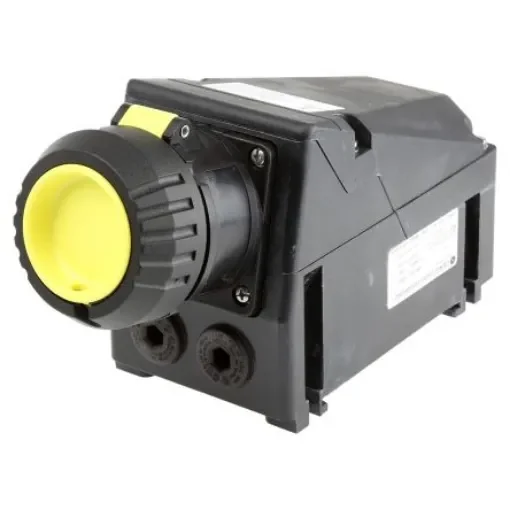

Eaton IP66 Surface Mount 2P + E Power Connector Socket ATEX, Rated At 16A, 130 V - GHG5114304R0002
Eaton's IP66 power connector socket ensures safe and reliable connections in hazardous environments.
Manufacturer part number: GHG5114304R0002
GTIN: 4250217408625
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 16A
Plug/Socket = Socket
Pole Format = 2P + E
Voltage Rating = 130 V
Mounting Type = Surface Mount
Gender = Female
Body Orientation = Straight
IP Rating = IP66
Hazardous Area Certification = ATEX
Maximum Operating Temperature = +55°C
BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039. Cable entry sizes for 16A versions: 8-17mm ;sup>2 ;/sup>, 32A 17-28mm ;sup>2 ;/sup>, terminal capacity: 16A 1-4mm ;sup>2 ;/sup>, 32A 4-10mm ;sup>2 ;/sup>. Eaton CEAG Explosion Protected Plug and Socket System. Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment. Features ; Benefits. • Patented plug and turn connections • Heavy duty and high-quality connectors designed for power distribution in industrial settings • Time-saving easy plug-in with low insertion force • Ingress protection to IP66/67 • Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers Couplers will accept Enhanced and Standard Plug connector
