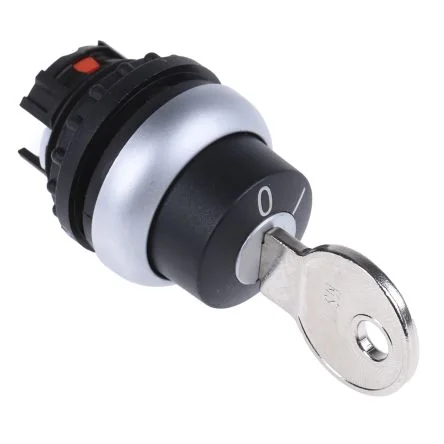

Eaton 2-position Key Switch Head, Latching, 22mm Cutout - 229092 M22-WRS-A1

Cutout Diameter = 22mm
Number of Positions = 2
Key Type = Flat
Switch Actuation = Latching
IP Rating = IP66
Angle of Throw = 40°
Illuminated = No
Number of Keys = 1
Maximum Operating Temperature = +70°C
Mechanical Life = 100000Operations
Minimum Operating Temperature = -25°C

Eaton M22-WRS-A1 Key-operated actuator This 2-position key operated selector switch, also known as a rotary key switch, is designed for use with the RMQ-Titan illuminated selector switches. Offering an IP rating of IP66 which provides complete protection against contact (dust-tight) and against powerful water jets with increased pressure. It has a hole diameter cut-out of 22.5 mm
