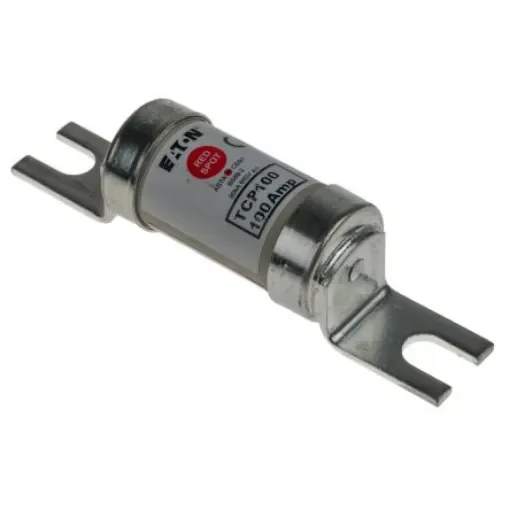

Eaton 100A British Standard Fuse, A4, 660V ac, 93.7mm - TCP100

Current Rating = 100A
Fuse Size = A4
Voltage Rating = 660V ac
Fuse Standard = BS 88-2:1988, IEC 60269-2
Fixing Centres = 93.7mm
Application Category = gG, gM
Tag Width = 19.1mm
Fuse Speed = T
High Rupture Capacity = Yes
Overall Length = 111mm
Tag Type = Slottedmm
Tag Orientation = Offset
Body Height = 58mm

Eaton Bussmann Series Red Spot™ Range, Type 'T' HBC Fuses. The Red Spot range of offset slotted fuses (or bolted tag fuses) from Eaton Bussmann is specifically designed for the protection of general industrial applications such as power distribution, cable protection and motor protection. Available in BS88 British Standard fuse sizes from A1 to A4, offset slotted and bolted fuses are suitable for general purpose rating (gG) and dual motor rating (gM) motor protection types. Features and Benefits. • 2 to 200 A rated current • Breaking capacity 80 kA up to 690 V ac • Type A1 rated up to 550 V ac/ 250 V dc • Type A2 rated up to 660 V ac / 460 V dc • General purpose (gG) and dual motor rated (gM) types • Low power dissipation • ASTA 20 certified. As the fuse allows for the starting surge of a motor its full load current must not exceed the lesser of the dual current rating. e.g. 20 M25 must not have a continuous load of greater than 20A.
