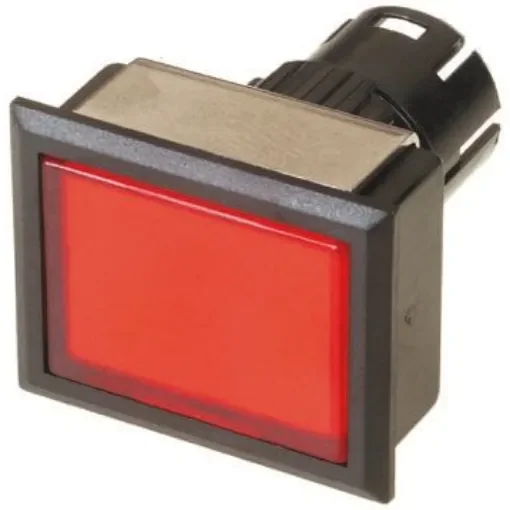

EAO Red Latching Push Button Head, IP65 - 61-1200.0,61-9681.2,61-9931.0

Push Button Colour = Red
Push Button Actuation = Latching
IP Rating = IP65
Minimum Operating Temperature = -20°C

These switches are complete with a bezel for flush mounting. The 25mm diameter bezels are available in either plastic or aluminium. If they are to be used as raised switches, then a 16.5mm diameter cut-out can be used for all heads.. EAO Flushmount Pushbutton Switches, Series 61. The EAO Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount. Flush mounting (2mm front-of-panel protrusion), professional grade pushbutton switches Momentary or maintained high quality with a good tactile feel Flush mounts into 24x24mm square, 25mm round and 24x30mm rectangular cut-outs Switch rating 5A @ 250Vac IP65 protection Large legend area Self cleaning snap action switching element Suitable for use with T1 3/4 midget groove lamps or LED, see stock numbers ; 3607660 3607660 or ; 2829976 2829976 typically For Contact Blocks see stock numbers ; 219-5447 219-5447 , ; 219-5453 219-5453 or ; 219-5469 219-5469 Optional tool kit consisting of lens remover, contact block remover and mounting nut spanner is recommended, see stock no. ; 219-5481 219-5481
