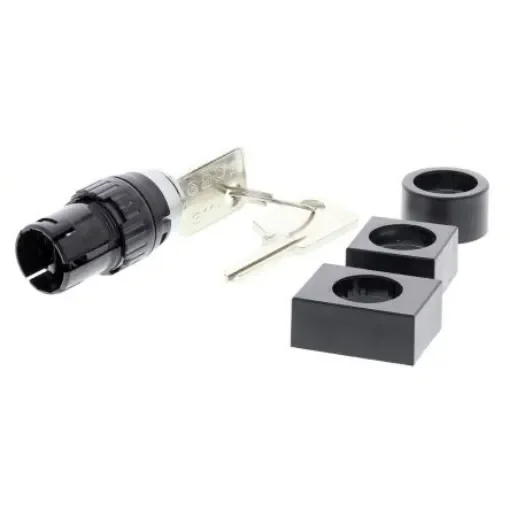

EAO IP65 (Front); IP40 (Rear) Key Switch, 5 A @ 250 V ac 2-Way - 61-9210.0,61-9220.0,61-9230.0,61-2201.0/D

Number of Positions = 2
Switch Operation = Latching
Key Trapping = Yes
Contact Current Rating = 5 A @ 250 V ac
IP Rating = IP65 (Front); IP40 (Rear)
Case Material = Polyamide
Depth Behind Panel = 42mm
Key Index Angle = 90°
Contact Material = Gold Plated Silver
Maximum Operating Temperature = +55°C

EAO Key ; Selector Switches ; Flush Mount Bezel Set, Series 61. The EAO Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount. Flush mount Keylock switches and Selector switch Keylock switches are supplied with three assorted front bezels which require the flush mount bezel set, stock no.( ; 331-4964 331-4964 ) for mounting Flush mounts into 24 x 24 mm square, 25 mm round and 24 x 30mm rectangular cut-outs Selector switch supplied with flush mount lever Momentary or maintained action IP65 protection Switch rating 5A @ 250 Vac Self cleaning snap action switching element For Contact Blocks - see stk nos. ; 219-5447 219-5447 , ; 219-5453 219-5453 or ; 219-5469 219-5469
