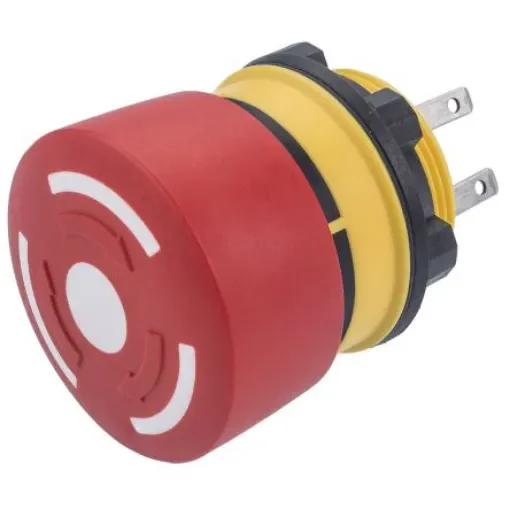

EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1 NO + 1 NC, IP65, IP67 - 84-5230.0020

Mounting Type = Panel Mount
Cutout Diameter = 22mm
Contact Configuration = 1 NO + 1 NC
Push Button Actuation = Twist ReleaseV ac
Series = 84
IP Rating = IP65, IP67
Colour = Red
Push Button Shape = Round
Supply Current = 1.5A
Depth = 26mm
Pole and Throw Configuration = SPST

Industrial or process automation equipment Machinery, in particular for handheld control units Robotics Material handling and lifting platforms Medical devices Robust mono-block with a foolproof and fail-safe design Very low back panel depth Attractive, modern design Reliable and long service life Clearly visible illumination Mounting cut-out: 22.3 mm Plug-in (2.8 mm x 0.5 mm) and 300 mm flat ribbon cable connection Switch rating max. 250 V, max. 3 A
