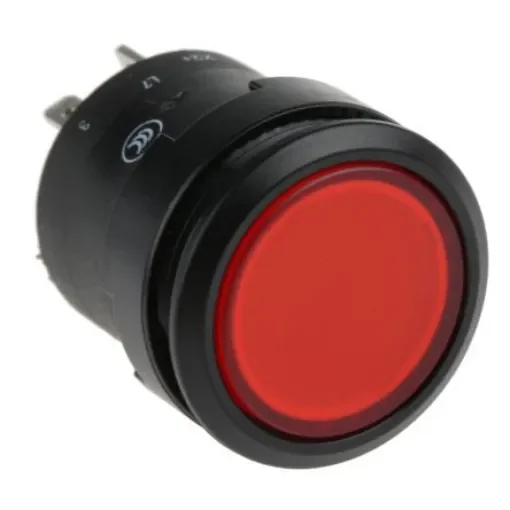

EAO 84 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.5mm Cutout, SPST, 24V dc, IP67 - K84-603.4205

Switch Operation = Momentary
Illuminated = Yes
Panel Cut Out Diameter = 22.5mm
Mounting Type = Panel Mount
Push Button Colour = Red
Contact Configuration = SPST
Voltage Rating = 24V dc
Push Button Style = Round
IP Rating = IP67
Push Button Material = Plastic
Contact Current Rating = 200 mA @ 42 V dc
Contact Material = Gold Plated
Manufacturer Part No. = K84-603.4205

Full Face Flush Illuminated Switch. Brought to you by EAO, this selection of illuminated push-button switches feature full-face, high brightness LED illumination. Low profile with a flush fitting, these illuminated switches also assure a high degree of environmental protection. Features and Benefits:. • IP rating: IP67 • Contact rating: 200mA @ 42Vac/dc (Max. power 2W) • Low profile switch; 2mm high • Depth behind panel: 31mm • LED Voltage: 24V dc • Gold plated N/O contacts
