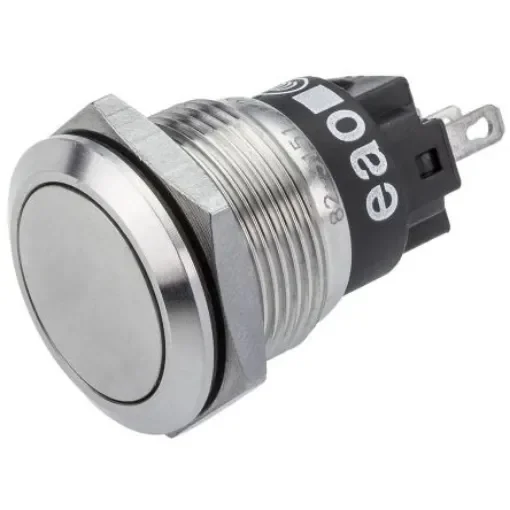

EAO 82 Series Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, 240V, IP65, IP67 - 82-5151.1000

Switch Operation = Momentary
Illuminated = No
Series = 82mm
Mounting Type = Panel Mount
Push Button Colour = Silver
Contact Configuration = SPDT
Voltage Rating = 240V
Push Button Style = Round
IP Rating = IP65, IP67
Contact Current Rating = 3A
Contact Material = Silver Alloy
Manufacturer Part No. = 82-5151.1000V

EAO Series 82 Non-Illuminated Stainless Steel Vandal Resistant Switch. EAO Series 82 of robust stainless steel housed vandal resistant switches. Series 82 have been designed to adhere to IK10 impact resistance ; IP67 sealing requirements, making them suitable for exposed public applications. The series 82 are offered with either silver alloyed or gold-plated contacts, to offer reliable switching for low voltages ; currents. Features and Benefits Vandal resistant: IK10 impact resistance ; frontal protection up to IP67. Optional illumination ; laser marking options available. Excellent, crisp tactile feedback. > 1 million cycles of operation. Typical Applications Exposed public areas. Medical equipment. Audio and video equipment. Building management. Machinery ; factory equipment.
