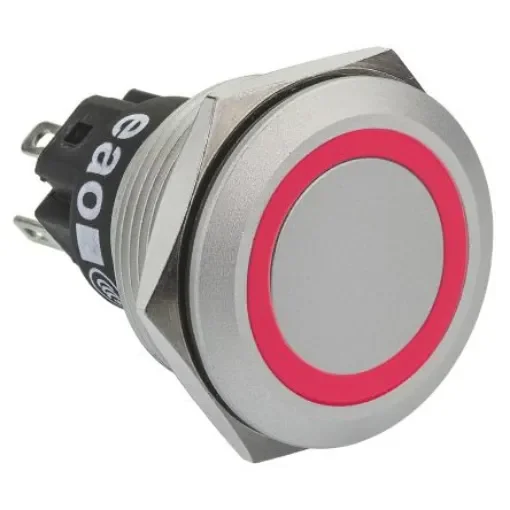

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.3mm Cutout, SPDT, Red LED, 240V, IP65, IP67 - 82-6551.1116

Switch Operation = Momentary
Illuminated = Yes
Panel Cut Out Diameter = 22.3mm
Mounting Type = Panel Mount
Contact Configuration = SPDT
Voltage Rating = 240V
Push Button Style = Round
LED Colour = Red
IP Rating = IP65, IP67
Contact Current Rating = 3A
Contact Material = Silver Alloy
Manufacturer Part No. = 82-6551.1116V

CE, UL. EAO Series 82 Illuminated Anti-Vandal Switches. Series 82 illuminated anti-vandal switches from EAO. The switches have an aesthetic design combined with a robust metal housing and conform to protection ratings; IK10 (physical attack) and IP67 (Dust and waterproof), making them ideal for use in public areas and harsh conditions. Three size versions are available for mounting into cut-outs of 16, 19 and 22mm. Aluminium construction Flat, convex and raised button types available Daylight readable illumination Excellent tactile switching action
