EAO 56 Series Illuminated Push Button Switch, Momentary, Panel Mount, SPST, IP65, IP67 - 56-011.03.300.00.04.004.000 ,56-1400

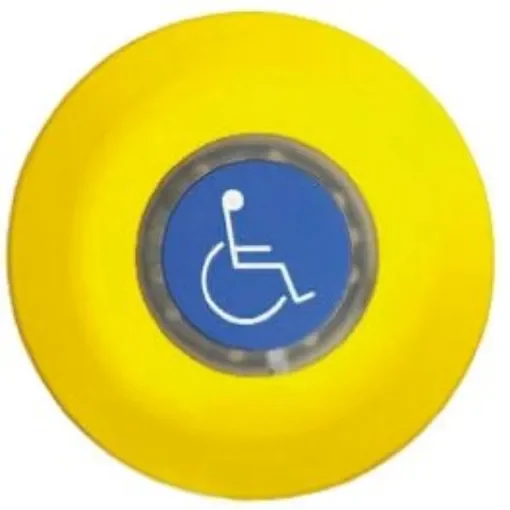

Disabled Access Pushbuttons IP67. Door open – Wheelchair symbol plus "Door Open" engraved on bezel, blue raised metal palm push lens with wheelchair symbol. Illuminated with 8 green LEDs,SOS - Red raised metal lens engraved "SOS" with 8 red LEDs and yellow bezel "Emergency Aid",Open/Braille - Natural aluminium raised lens yellow LEDs with open chevrons and yellow bezel engraved "Open" with braille,Open/Braille with raised chevrons Natural aluminium raised lens yellow LEDs with black, raised, open chevrons and yellow bezel engraved "Open" with braille,Non Illuminated - Switch with blue plastic lens engraved with wheelchair symbol and plain yellow bezel. 24Vdc LED halo illumination/unilluminated Raised metal pressel for palm push operation/plastic lens Large 34mm diameter vandal resistant actuator IP67 sealed from front Front mount with bezel/rear mount with studs 1 Normally open switch: Rating 137Vac/dc Max 200mA, minimum 5Vdc, 5mA Front mounting: 3 fixing screws tamperproof with bezel Rear mounting: use 3 studs
