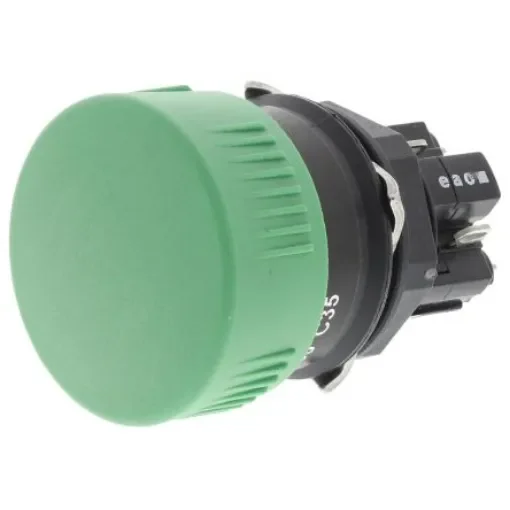

EAO 51 Series Push Button Switch, Momentary, Panel Mount, 16mm Cutout, DPDT, 250V ac, IP65 - 51-156.0255

Switch Operation = Momentary
Illuminated = No
Panel Cut Out Diameter = 16mm
Mounting Type = Panel Mount
Push Button Colour = Green
Contact Configuration = DPDT
Voltage Rating = 250V ac
IP Rating = IP65
Contact Current Rating = 5 A @ 250 V ac
Contact Material = Gold Plated
Manufacturer Part No. = 51-156.0255

Push Button Switch EAO 51 Series. EAO 51 Series Push Button switches with a range of raised mushroom head colours that feature front of panel protection to IP65. Dimensions: Depth behind panel 18.8mm, panel cut-out 16mm Contact rating 5 A @ 250 V ac Momentary switching snap-action Gold contacts
