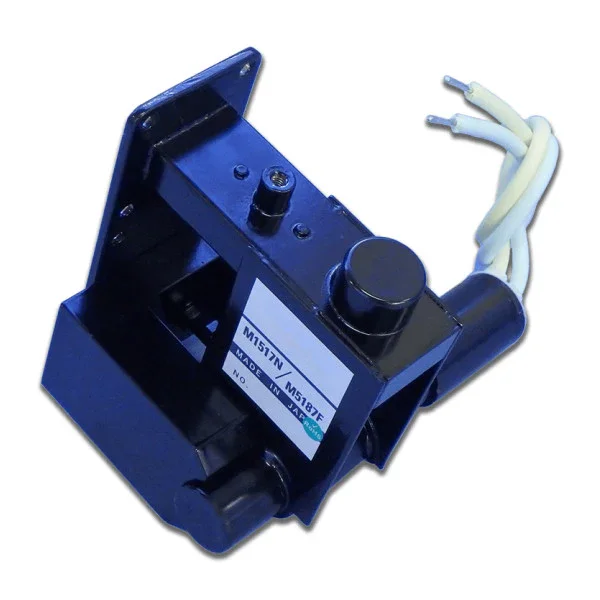

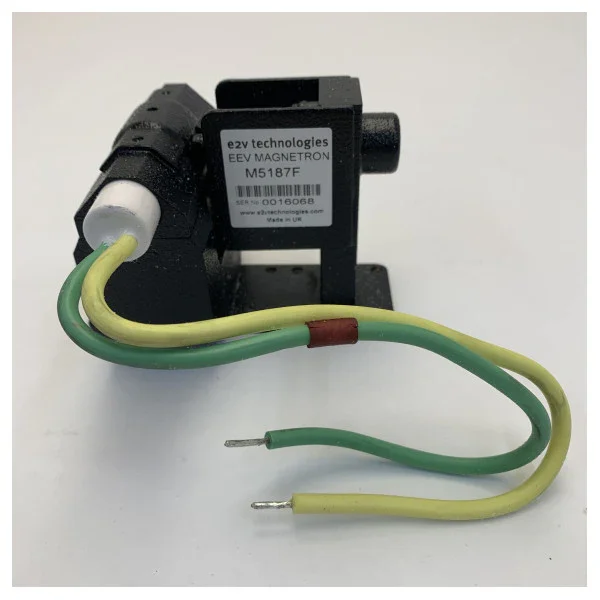

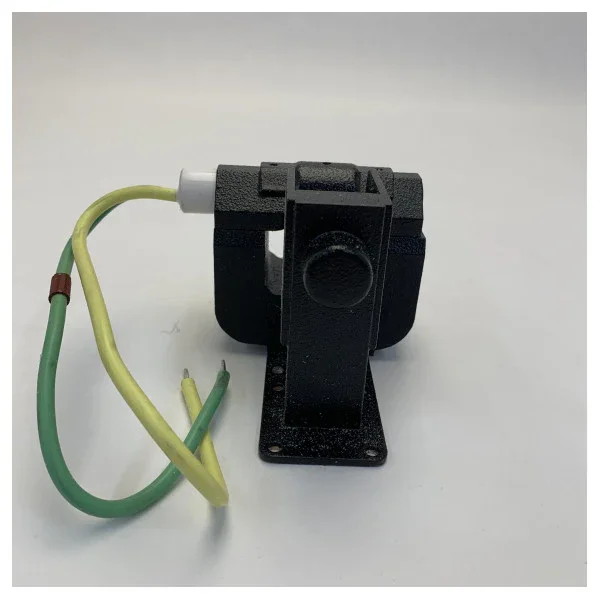

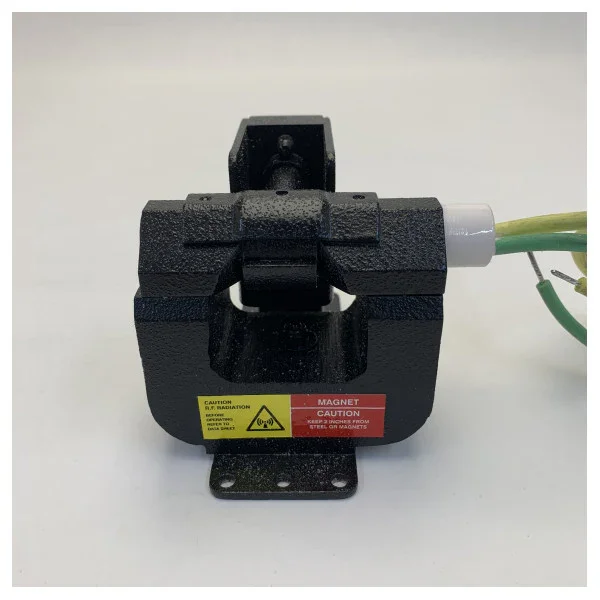

E2V M5187F X-Band Radar Magnetron 25 kW
The E2V M5187F is a high-quality X-Band radar magnetron designed for maritime and industrial applications that demand utmost precision and reliability. With an impressive peak power of 25 kW, this magnetron delivers the power needed for navigation systems and long-range detection, even under severe weather conditions at sea.
This magnetron is known for its long lifespan and stable performance. Thanks to its robust construction, the M5187F is the standard choice for technicians and ship owners who do not want to compromise on safety. Its compact design allows for easy integration into existing radar systems operating within the X-Band frequency.
Key Features
- High Peak Power: An output of 25 kW ensures a sharp radar image and a wide range.
- Reliable Technology: Manufactured by E2V, a world leader in radar components.
- X-Band Optimization: Specifically tuned to frequencies between 9380 and 9440 MHz for optimal signal processing.
- Air-Cooled System: Designed for efficient heat dissipation without complex cooling installations.
- Long Lifespan: Built with durable materials to maximize maintenance intervals.
Specifications and Technical Details
The E2V M5187F meets strict technical requirements for professional use. Below are the key specifications of this model:
- Component Type: Magnetron for X-Band radar.
- Frequency Range: Fixed frequency between 9380 MHz and 9440 MHz.
- Maximum Peak Power: 25 kilowatts (kW).
- Anode Voltage: Average 7.5 kV to 8.5 kV.
- Anode Current: Typically 7.5 A to 9.0 A.
- Filament Voltage: 6.3 Volts.
- Filament Current: 0.5 Amperes to 0.6 Amperes.
- Warm-Up Time: Minimum preheating of 60 seconds required for safe use.
- Cooling: Forced air cooling necessary.
- Weight: Approximately 1.5 kilograms.
Why Choose the E2V M5187F?
When you choose the E2V M5187F, you invest in the continuity of your navigation system. Whether for commercial shipping or specialized radar installations, this 25 kW magnetron provides the stability that is essential for accurate object detection. The simple installation and compatibility with various radar systems make this an essential spare part for your technical inventory.
