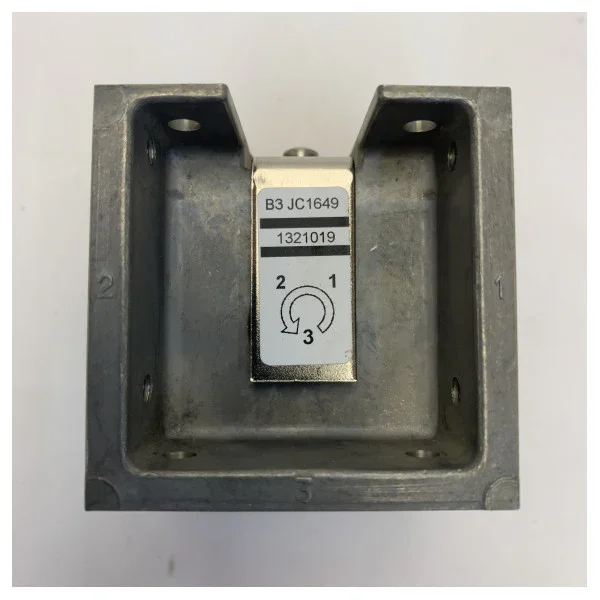

Product Description: E2V B3JC1649 3-Port H-Plane X-Band Junction Circulator
This is a highly efficient 3-port H-plane junction circulator from E2V, model B3JC1649. This crucial component is specifically designed for applications in the X-band frequency range, where reliable and low-noise signal circulation is essential.
The E2V B3JC1649 circulator is a passive device that directs electromagnetic energy in a closed loop from port to port, while blocking energy transfer in the opposite direction. This makes it ideal for isolating sensitive receivers from high-power transmitters and for simultaneous use of a single antenna for both transmitting and receiving (duplexing).
Key Features
- Three Ports (3-Port): For flexible integration into various RF systems and radar setups.
- H-Plane Configuration: A widely used design that ensures excellent isolation and low insertion losses in the X-band.
- Robust Construction: Built to perform under demanding conditions, ensuring a long lifespan and reliability.
- Optimized for X-Band: Perfectly tuned to the frequencies typically used in radar, satellite communication, and specialized measurement equipment.
Specifications (Integrated in Text)
The E2V B3JC1649 is a 3-port H-plane junction circulator with an operational frequency range in the X-band. This model is known for its low insertion loss, which is typically less than 0.4 dB, crucial for maintaining signal integrity. The isolation between the ports is particularly high, with a value of more than 20 dB, effectively minimizing interference. The voltage standing wave ratio (VSWR) is excellent and remains below 1.25:1, indicating very good impedance matching. The circulator is capable of handling a nominal RF power suitable for the intended X-band applications. The connector type is typically SMA (female), ensuring a simple and reliable connection. The component is compact and designed for easy integration into the system architecture.
Applications
This specialized component is often used in:
- Radar Systems (Transmit and Receive)
- Satellite Communication Equipment
- Test and Measurement Setups
- Electronic Warfare (EW) Systems
Choose the E2V B3JC1649 for your most demanding X-band applications and benefit from the superior isolation and low signal losses.
