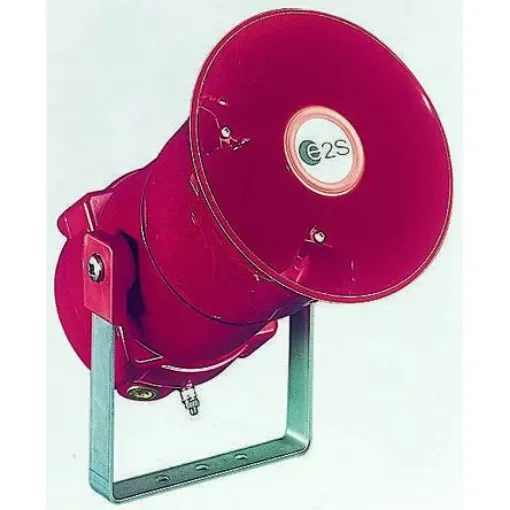

e2s BEXS110E Series Surface Mount Electronic Sounder, 24 V dc, 117dB at 1 m, IP66, DC, 23-Tone - BEXS110E24DC

Supply Voltage = 24 V dc
IP Rating = IP66
Decibels at 1 Metre = 117dB
Current Type = DC
Number Of Tones = 23
Housing Colour = Red
Mounting Style = Surface Mount
Diameter = 181 mm
Application Type = Sounder
Minimum Decibel = 72dB
Maximum Decibel = 110dB
Series = BEXS110E
Hazardous Area Certification = ATEX
Housing Material = Marine Grade Aluminium°C

e2s Alarm SounderThe e2s alarm sounder is a surface mount, 32-tone electronic alarm with a sound level output of 117dB(A) at a distance of up to 1m. The BEx range features enclosures manufactured from corrosion proof, marine grade, phosphate and powder coated, copper-free LM6 aluminium. It is enabled with high impact, re-entrant, fire-retardant ABS flare horns. All models have 2, M20 cable entries, large termination areas containing in, and out terminals. It works on a supply voltage of 24VDC. The sounder is available in red body colour.Features and BenefitsAutomatic synchronisation on multi-sounder system Very large termination area Die-cast LM6 aluminium alloy body with UL94V0 flame retardant ABS re-entrant horn Stainless steel mounting brackets Ratchet adjustable stainless steel ’U’ bracket Programmable’ version available: 45 alarm tones 4 remotely selectable stages Any tone can be assigned to any stage User-configurable continuous frequency toneApplicationsHazardous areas Zone 1 Zone 2CertificationsIP66 rated IP67 rated UKOOA/PFEER compliant ATEX IECEx INMETRO GOST-R VdS CE
