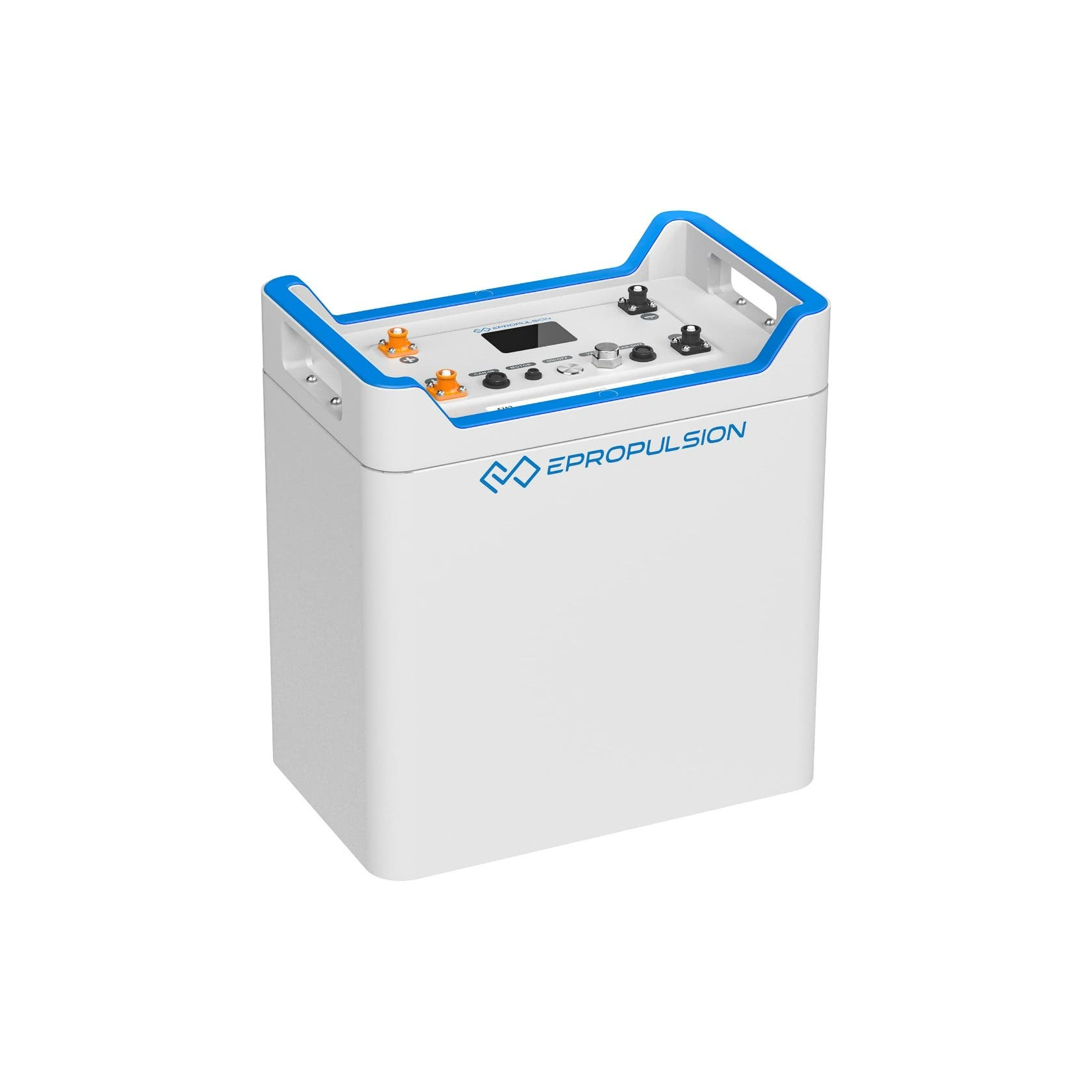

The ePropulsion E163 LiFePO₄ Battery is a high-performance, durable lithium iron phosphate battery designed to power ePropulsion's electric motors, including the Navy 3.0 Evo and Navy 6.0 Evo models. With a capacity of 8345 Wh and a nominal voltage of 51.2 V, it enables extended voyages for electric boating enthusiasts.
- High Performance: Supports full power output for Navy 6.0 Evo (9.9HP equivalent).
- Long Lifespan: Offers 3,000 cycles at 80% Depth of Discharge (DOD), surpassing the longevity of traditional lead-acid batteries.
- Safety and Reliability: Equipped with an intelligent Battery Management System (BMS) for maximum safety. The all-metal housing provides enhanced weather resistance, impact resistance, and drop protection.
- High Energy Density: Delivers three times the energy density and 70% less weight compared to standard lead-acid batteries.
- Easy Installation: Connectors can be installed with a single hand, requiring no additional tools.
- Compatibility: Fully compatible with ePropulsion motors, allowing data synchronization for smart operation strategies.
Technical Specifications
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Nominal Voltage: 51.2 V
- Capacity: 8345 Wh / 163 Ah
- Battery Lifespan: 3,000 cycles at 80% DOD
- Weight: 76 kg
- Dimensions: 470 x 295 x 495 mm
- Cut-off Voltage: 41.6 V
- Final Charging Voltage: 57.6 V
- Max Continuous Discharging Current: 150 A
- Cell Configuration: 16S1P
- Charging Time (220V): One charger: 7.2 hours; Two chargers in parallel: 3.6 hours
- Charging Time (110V): One charger: 11 hours; Two chargers in parallel: 5.4 hours
- Charging Temperature: 0 to 55°C (32 to 131°F)
- Discharging Temperature: -10 to 60°C (14 to 140°F)
- Communication: CAN-Bus for parallel connection; RS485 for ePropulsion motors
- Shipping Classification: UN3480, Class 9, UN38.3 Certified
- Approvals: CE, UKCA, FCC
- Warranty (Non-Commercial Use): 2 years
Materials
- Casing: All-metal housing for enhanced durability and protection
- Connectors: Waterproof according to IP67 standards
Compatibility Information
The E163 battery is specifically designed for ePropulsion's Navy 3.0 Evo and Navy 6.0 Evo electric motors, ensuring seamless integration and optimal performance.
