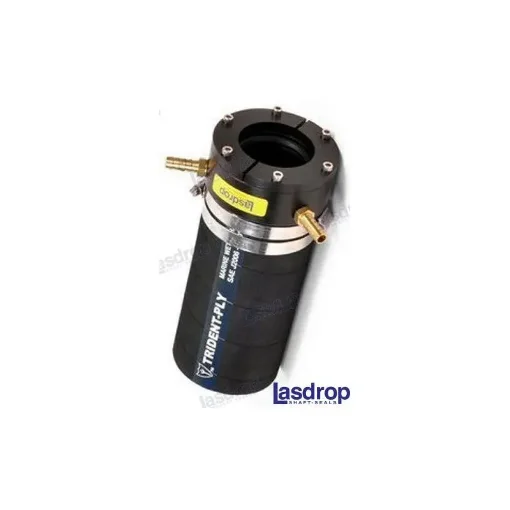

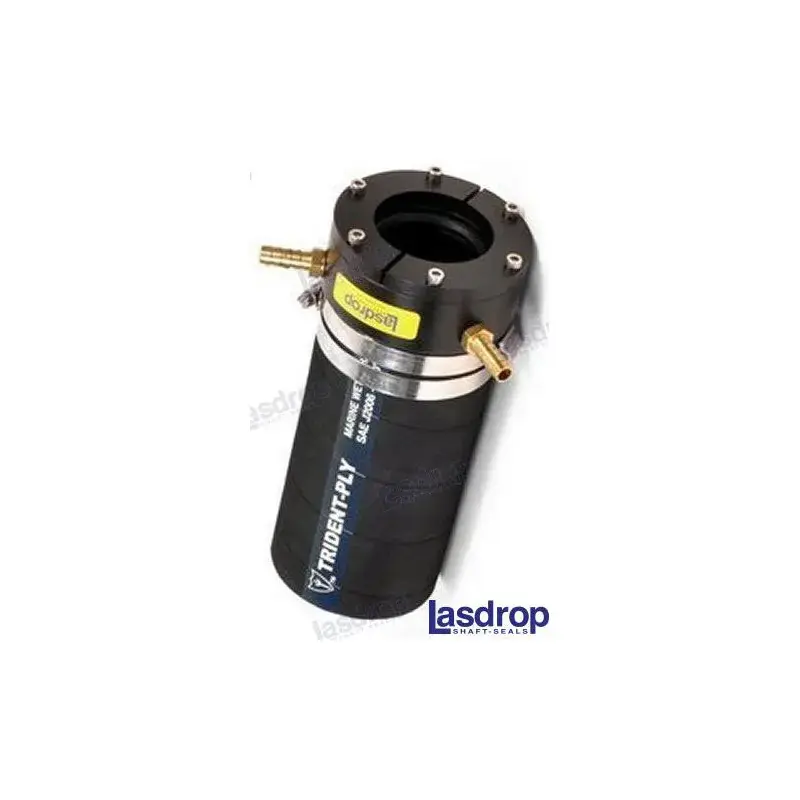

The DrySeal gland provides a reliable solution to ensure tight sealing of the shaft or rudder on all types of vessels. Its compact design facilitates installation and direct maintenance on board. It includes an inner seal specifically manufactured for marine use, held in place by a two-piece plate, and securely fitted to the outer body made of high-quality technical polymer.
Technical Specifications
- Shaft/line diameter: 1-1/4"
- Outer diameter: 2-1/4"
- Body made from corrosion and marine agent resistant polymer.
- Long-lasting inner seal, specifically designed for marine environments.
- Double plate system for secure fixing.
- Allows seal replacement without dismantling the shaft or unit.
Advantages
- Eliminates water ingress and egress, ensuring watertightness.
- Quick and hassle-free installation.
- Low maintenance thanks to direct access to the seal.
- Also compatible as a rudder gland.
Applications
- Sailing and motor vessels.
- Propeller shaft and rudder system installations.
Usage and Maintenance Tips
- Check the seal condition periodically, especially after long navigation days.
- Replace the seal if signs of wear or looseness appear.
- Rinse with fresh water to remove salt deposits and dirt.
Compatibilities and Suggestions
- Verify shaft and opening dimensions before installation.
- Suitable for standard 1-1/4" shafts.
- Spare part replacement is simple and fast.
