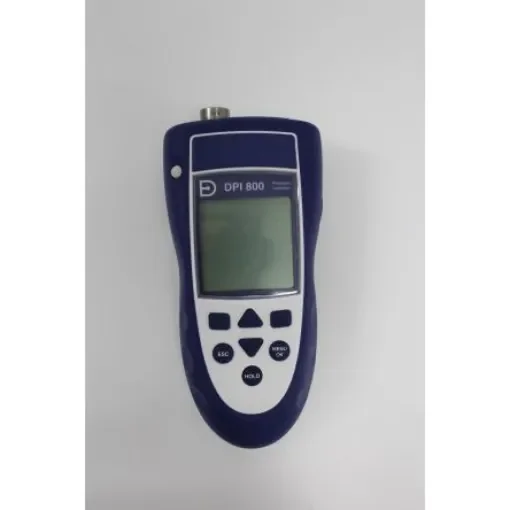

Druck DPI 800 25mbar to 200mbar Pressure Calibrator - I800S-1-465-7644

Maximum Pressure Measurement = 200mbar
Minimum Pressure Measurement = 25mbar
Pressure Port Type = Differential, Gauge
Model Number p = DPI 800
Current Loop Measurement = Yes
Leak Testing = Yes
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = -10°C
Weight = 500g
Dimensions = 180 x 85 x 50mm
Height = 50mm
Length = 180mm
Width = 85mm

Druck Pressure Indicator - DPI 800. Forming part of Druck's DPI 800 series, this pressure indicator is ideal for use within test and calibration applications. The DPI 800 features a complete range of advanced, robust and simple to use hand-held pressure indicators and loop calibrator instruments. Providing users with an ideal pressure measurement tool for applications involving pressure testing, maintenance testing, transmitter calibration, loop set-up and diagnostics as well as switch verification. Features ; Benefits. All-inclusive accuracy - can be relied on year in year out, regardless of the tough environmental conditions Dual sensor configuration - features an extended measurement range and simultaneous two-channel reading Stainless steel sensor construction - available for compatibility with a wide range of fluids and gases Programmable leak test - this function reports the pressure drop and leak rate Advanced features - hold, maximum/minimum/average, alarm and tare facilitate troubleshooting Cost-effective because of the advanced features and technical innovations addressing more applications in a significantly less amount of time whilst delivering reliable and trustworthy results Plug/Play connector for IDOS Universal Measurement Modules Pressure ranges - 10 in H2O to 10,000 psi (25 mbar to 700 bar) including vacuum options Graphic LCD display with backlight - resolution 99999 Easy to use menu-driven interface Operating temperature is 14°F to 122°F (-10°C to 50°C) and the storage temperature is -4°F to 158°F (-20°C to 70°C) Convenient, one-handed operation - offering ease of portability Though the secure grip will reduce accidents, the pressure calibrator is elastomer protected and impact resistant Robust and weatherproof Up to 0.01%FS Accuracy mA measure, switch test and 24V loop power HART loop resistor Ideal for test/calibration of many popular process parameters. Did you know?. The DPI 800 has no electrical Loop calibration functionality. What's included with the kit?. 3 AA alkaline batteries Calibration certificate User guide Set of electrical test leads Pressure indicator
