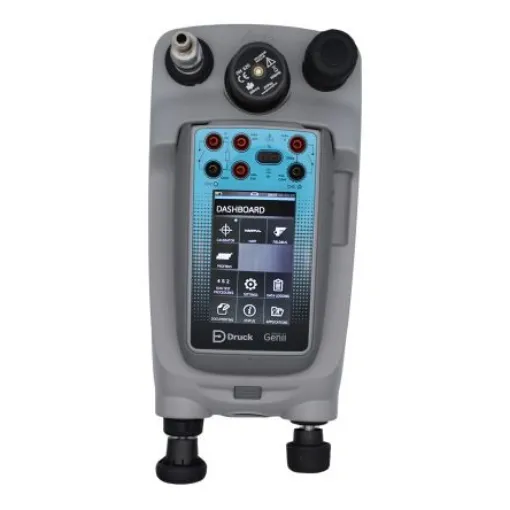

Druck DPI 620 0bar to 20bar Pressure Calibrator Calibration Kit - DPI620SPC-20barg
Accurate Druck DPI 620 Pressure Calibrator for 0-20bar measurements, ideal for testing various instruments.
Manufacturer part number: DPI620SPC-20barg
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Pressure Measurement = 20bar
Minimum Pressure Measurement = 0bar
Pressure Port Type = Gauge
Model Number p = DPI 620
Intrinsically Safe = Yes
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = -10°C
Weight = 575g
Dimensions = 183 x 114 x 42mm
Height = 42mm
Length = 183mm
Width = 114mm
1The Druck DPI620SPC-20barg is a pressure calibrator in the DPI 600 family. This pressure calibrator provides simultaneous measurement and source capabilities for electrical, frequency and temperature for the setup, testing and calibration of most types of process instruments including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.ATEX, IECEx and ETL approved for hazardous area use Pressure modules to expand your pressure range Pressure relief valve to protect pressure module from overpressure High resolution touch display and UI (user interface) supporting gestures and swipes for a flatter menu structure and greater ease of use
