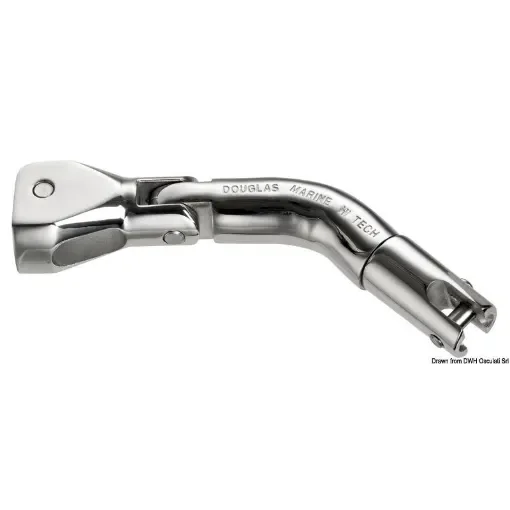

The Trimmer Anchor Swivelling Connector by Douglas Marine is a robust and innovative accessory designed to enhance anchoring efficiency and safety. Constructed from polished AISI 316 stainless steel, it offers exceptional durability and resistance to corrosion in marine environments.
- Self-Righting Function: Ensures the anchor approaches the bow or chock from the correct orientation, reducing the risk of snagging or damage.
- Double Shield Design: Equipped with a double shield to prevent lever arm effects when the anchor is engaged.
- Anti-Oscillation Mechanism: Facilitates smooth retrieval by minimizing swinging during the lifting process.
- Enhanced Load Capacity: Offers a side load capacity three times higher than standard joints, ensuring robust performance under demanding conditions.
Technical Specifications
- Chain Compatibility: Suitable for chains with diameters ranging from 10 to 12 mm (0.4 to 0.5 inches).
- Dimensions: 230 mm x 22 mm x 37 mm (9 inches x 0.8 inches x 1.4 inches).
- Breaking Load: 8,500 kg (18,739 lbs).
- Recommended Anchor Weight: 20 to 30 kg (44 to 66 lbs).
- Weight: Approximately 0.4 kg (0.88 lbs).
Materials
- Construction: Polished AISI 316 stainless steel, known for its high corrosion resistance and strength.
Dimensions
- Length: 230 mm (9 inches).
- Width: 22 mm (0.8 inches).
- Height: 37 mm (1.4 inches).
Compatibility Information
- Chain Size: Compatible with chains having diameters between 10 and 12 mm (0.4 to 0.5 inches).
- Anchor Weight: Designed for anchors weighing between 20 and 30 kg (44 to 66 lbs).
