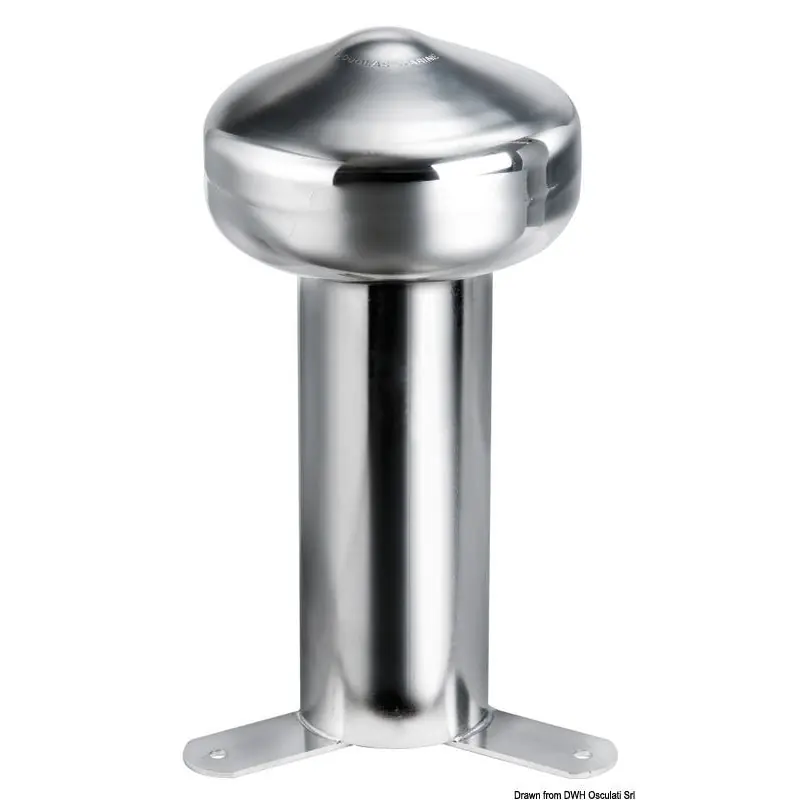

The Douglas Marine Chain Boy Chain Distributor is a patented device designed to ensure the uniform distribution of anchor chain within the locker, preventing issues such as blockage, tangling, or overloading during anchoring operations. It also facilitates the retrieval of the chain by guiding it towards the head of the distributor.
- Uniform Chain Distribution: Ensures even distribution of the chain in the anchor locker, preventing tangling and overloading.
- Facilitates Chain Retrieval: Guides the chain towards the head of the distributor, making retrieval easier.
- Adjustable Height: Height can be adjusted from 325 mm to 475 mm using the provided inserts.
- Compatibility: Suitable for chains ranging from 6 mm to 12 mm in diameter.
- Easy Installation: Attaches easily to the chain locker using screws.
Technical Specifications:
- Base Diameter: 150 mm
- Head Diameter: 170 mm
- Adjustable Height: 325 mm to 475 mm
- Material: Stainless steel
- Weight: Approximately 0.8 kg
Constructed from high-quality stainless steel, the Chain Boy Chain Distributor is designed to withstand marine conditions and ensure longevity.
Compatibility Information:
Compatible with anchor chains ranging from 6 mm to 12 mm in diameter. The minimum recommended height from the head to the chain entry point is 80 mm for 6/8 mm chains and 100 mm for 10/12 mm chains.
