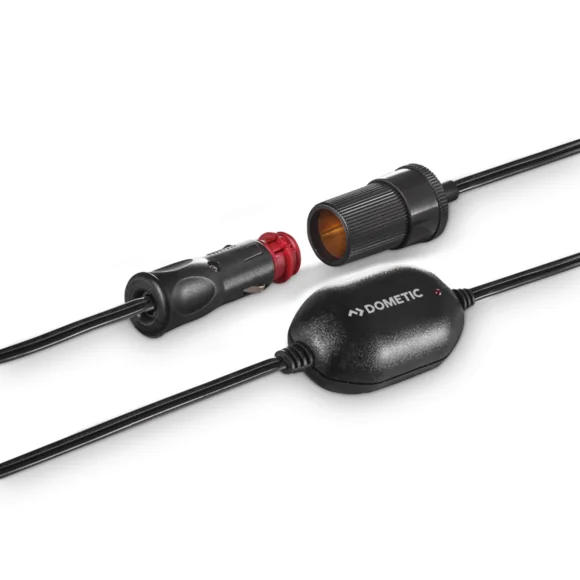

The Dometic CoolPower M50U is a universal battery voltage monitor designed to protect vehicle batteries from excessive discharge. Ideal for 12 V thermoelectric cooling devices with a cigarette lighter plug, it ensures that your battery remains in optimal condition by automatically disconnecting the appliance when the voltage drops below a set level and reconnecting it once the voltage returns to normal.
- Automatic Voltage Monitoring: Continuously monitors the vehicle's battery voltage to prevent over-discharge.
- Automatic Cut-Off and Recovery: Disconnects the connected appliance when the voltage falls below 11.6 V and reconnects it when the voltage exceeds 12.8 V.
- LED Status Indicators: Provides clear visual feedback on the device's operational status.
- Universal Compatibility: Suitable for all 12 V applications using a cigarette lighter socket.
- Easy Installation: Ready to connect with a cigarette lighter plug, facilitating straightforward setup.
Technical Specifications:
- Input Voltage: 12 V DC
- Output Voltage: 12 V DC
- Maximum Output Current: 5 A
- Cut-Off Voltage: 11.6 V DC
- Cut-In Voltage: 12.8 V DC
- Continuous Power at 25°C: 65 W
- Operating Temperature Range: 0°C to 40°C
- Dimensions (L x W x H): 177 mm x 36 mm x 123 mm
- Net Weight: 0.12 kg
- Material: Plastic housing
The Dometic CoolPower M50U is compatible with all 12 V appliances that utilize a cigarette lighter socket, including older thermoelectric cooling devices. It is particularly beneficial for protecting vehicle batteries from excessive discharge when using such devices.
