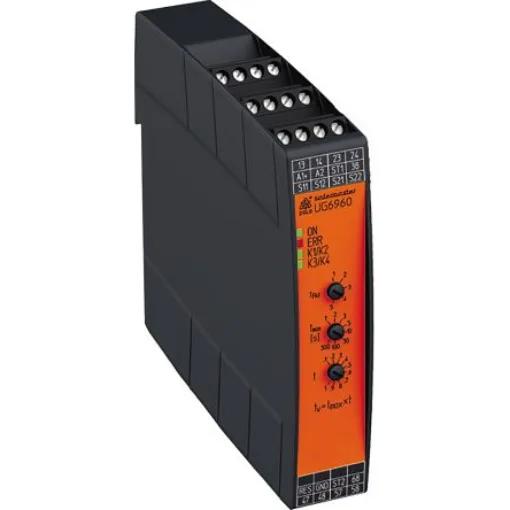

Dold UG6960 Series DIN Rail Mount Timer Relay, 24V dc, 4-Contact, 300s, DPST - UG6960.04PS/100/61 DC24V 300s
Reliable 24V DC DIN rail timer relay with 4 contacts for versatile applications.
Manufacturer part number: UG6960.04PS/100/61 DC24V 300s
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Mode of Operation = Continuous
Number of Contacts = 4
Width = 120.3mm
Series = UG6960°C
Minimum Operating Temperature = -25°C
Line fault detection on On-button: Manual restart or automatic restart With or without cross fault monitoring 2-channel Forcibly guided output contacts Output: 2 NO instantaneous contact and 2 NO contacts delayed 1 semiconductor output for instantaneous contacts 1 semiconductor output for delayed contacts LED indicator for operation, safety function, time delay and failure As option with pluggable terminal blocks for easy exchange of devices with screw terminals or with cage clamp terminals Width: 22.5 mm Advantages / Customer benefit Various delay functions adjustable at device: Release delay Release delay retrigger able On delay Fleeting on make / break Delay function settable via potentiometer Various safety functions defined: E-Stop Safety gate Two-hand control Safety mat / Safety edge Exclusive or contacts Light curtain Manual or auto start Instantaneous contact and safety delayed contacts Protection against manipulation by seal able transparent cover
