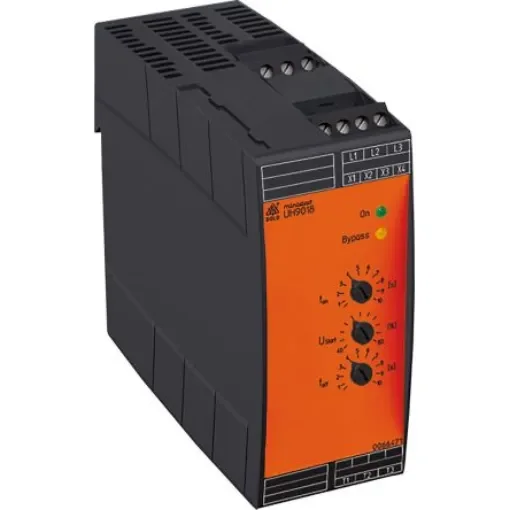

Dold Soft Starter, 1.5 kW, 400 V ac, 3 Phase, IP20 - UH9018 3AC400V 50/60Hz 1,5kW
Ensure smooth motor operation with Dold's 1.5 kW soft starter, featuring adjustable ramp time and reliable performance.
Manufacturer part number: UH9018 3AC400V 50/60Hz 1,5kW
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Power Rating = 1.5 kW
Motor Starter Type = Soft Start
Voltage Rating = 400 V ac
Phase = 3
Current Rating = 16 A
IP Rating = IP20
Overall Length = 45mm
Overall Width = 121mm
Overall Depth = 107mm
soft start with soft stop For motors from 1.5 kW to 7.5 kW 2-phase control Adjustable ramp time, starting torque and starting voltage Kickstart-(Boost-)function DIN-rail mounting Width: 45 mm Advantages / Customer benefit Protection of the drive unit Integrated bridging contactor (Bypass) Easy operation Comprehensive diagnostic via LED-flashing codes possible Application Motors with gear, belt or chain drive Fans, pumps, conveyor systems, compressors Woodworking machines, centrifuges Packaging machines, door drives Start current limiting on 3 phase motors
